Score Display
Extract repeated code into subroutines with CALL and RET. Print the treasure count to screen memory using the ROM's built-in font — the first HUD element.
Unit 10 has the same ten-line collection check copied four times — once per direction. Change the logic and you update four places. Miss one and you have a bug. This is what subroutines solve.
CALL pushes the return address onto the stack and jumps to a routine. RET pops the address and jumps back. Four copies of the collection code become four CALL check_collect instructions. The code lives in one place.
This unit also adds the first HUD element: “TREASURE 0/3” printed at the bottom of the screen. Characters are drawn by reading the ROM’s built-in font and writing pixel data directly to screen memory — the same technique the player diamond uses, applied to text.
CALL and RET
CALL address does two things:
- Pushes the address of the next instruction onto the stack (the return address)
- Jumps to
address
RET does the reverse:
- Pops an address from the stack
- Jumps to it
The stack keeps track of where to return. This means subroutines can call other subroutines — each CALL pushes a return address, each RET pops one. As long as they’re balanced, execution always returns to the right place.
The check_collect Subroutine
The repeated collection code from Unit 10 becomes a single routine:
; A subroutine: CALL pushes the return address onto the stack,
; then jumps to the routine. RET pops the address and returns.
call check_collect ; Save under player, check treasure
; ... execution continues here after RET ...
; ----
check_collect:
ld a, (hl) ; Read attribute at target
ld (player_under), a ; Save it
bit 6, a ; BRIGHT = treasure?
ret z ; No — return immediately
res 6, a ; Clear BRIGHT (collected)
ld (player_under), a ; Update saved value
push hl
ld hl, treasure_count
inc (hl) ; Count it
pop hl
ret ; Return to caller
Each direction now calls it with one line:
call check_collectThe routine expects HL to point to the target attribute address (which it already does after the wall check). It saves the attribute, checks for treasure, collects if found, and returns. HL is preserved through PUSH/POP so the caller can use it as the new position.
Early Return with RET Z
RET Z returns immediately if the Z flag is set — meaning the target isn’t treasure. This is a conditional return: RET combined with a flag check. The Z80 also supports RET NZ, RET C, RET NC, and others. Early returns keep subroutines flat — no nested JR jumps needed.
Printing to Screen Memory
The Spectrum ROM contains a complete character set at $3C00 — 96 characters (ASCII 32–127), 8 bytes each. Every character is an 8×8 pixel bitmap, just like the player diamond.
To print character ‘T’ (ASCII 84):
- Calculate the font address:
84 × 8 + $3C00=$3EA0 - Copy 8 bytes from that address to screen memory
- Use
INC Dto step through pixel rows — the same trick as drawing the player
; Print a character to screen memory using the ROM's built-in font.
; The character set lives at $3C00 in ROM — 8 bytes per character.
; Entry: A = character (32-127), DE = screen address (pixel row 0)
; Exit: DE advanced to next column (E incremented)
print_char:
push de ; Save screen position
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl ; HL = character × 8
ld bc, $3c00
add hl, bc ; HL = address in ROM font
ld b, 8
.pchar: ld a, (hl) ; Read font pixel row
ld (de), a ; Write to screen
inc hl ; Next font byte
inc d ; Next pixel row (INC D = +256)
djnz .pchar
pop de ; Restore original screen address
inc e ; Move to next column
ret
The font address calculation uses three ADD HL, HL to multiply by 8 (doubling three times: ×2, ×4, ×8). Then ADD HL, BC adds the font base address. This is the standard way to calculate an offset into a table — multiply the index by the entry size and add the base.
Why Not Use ROM Print Routines?
The Spectrum ROM has built-in print routines (RST $10) that handle cursor positioning, scrolling, and control codes. They’re convenient for BASIC programs but depend on system variables being initialised — which doesn’t happen when loading an SNA snapshot directly. Writing to screen memory is more reliable and teaches more about the hardware.
Number to ASCII
Converting a single digit (0–9) to its ASCII character is one instruction:
ld a, (treasure_count)
add a, '0' ; 0→$30, 1→$31, ... 9→$39ASCII digits run from $30 (‘0’) to $39 (‘9’). Adding '0' (which is 48) shifts the number into the character range. The digit 3 becomes $33, which is the ASCII code for ‘3’.
Null-Terminated Strings
The label text is stored as a string ending with a zero byte:
score_text: db "TREASURE ", 0The print_str routine reads bytes until it hits zero, printing each one:
print_str:
ld a, (hl)
or a ; Null terminator?
ret z
push hl ; Save string pointer
call print_char
pop hl ; Restore string pointer
inc hl
jr print_strThe PUSH HL / POP HL is essential. print_char uses HL internally for the font lookup — without saving and restoring, HL would point into ROM font data instead of the string after the first character. Every CALL that might modify registers you need requires saving them first.
OR A — Testing for Zero
OR A is a common Z80 idiom. It ORs A with itself, which doesn’t change the value but sets the flags — specifically, Z is set if A is zero. It’s shorter than CP 0 (one byte vs two) and does the same job: test whether A is the null terminator.
Screen Address for Row 23
The score line sits at row 23, column 10. The screen address calculation:
- Row 23 is in the bottom third (rows 16–23)
- Third base:
$5000 - Row 23 is row 7 within the third
- Address:
$5000 + (7 × 32) + 10=$5000 + $E0 + $0A=$50EA
The attribute address follows the simpler formula: $5800 + (23 × 32) + 10 = $5AEA. The attributes are set to $47 (BRIGHT + INK 7) during initialisation — bright white text on black.
The Complete Code
; ============================================================================
; SHADOWKEEP — Unit 11: Score Display
; ============================================================================
; The repeated collection code from Unit 10 becomes a subroutine.
; CALL pushes the return address onto the stack, jumps to the routine.
; RET pops the address and returns. Four copies become four CALL lines.
;
; The score line at row 23 shows "TREASURE n/3". Characters are drawn
; by reading the ROM's built-in font at $3C00 and writing the pixel
; data directly to screen memory. Each character is 8 bytes — one per
; pixel row, copied with the familiar INC D trick.
;
; Number-to-ASCII conversion: ADD A, '0'. The digit 3 becomes $33,
; which is the ASCII code for the character "3". One instruction.
; ============================================================================
org 32768
; Attribute values
WALL equ $09 ; PAPER 1 (blue) + INK 1
FLOOR equ $38 ; PAPER 7 (white) + INK 0
TREASURE equ $70 ; BRIGHT + PAPER 6 (yellow) + INK 0
HAZARD equ $90 ; FLASH + PAPER 2 (red) + INK 0
PLAYER equ $3a ; PAPER 7 (white) + INK 2 (red)
; Collision
WALL_INK equ 1 ; INK colour that means "wall"
; Room
ROOM_TOP equ 10
ROOM_LEFT equ 12
ROOM_WIDTH equ 9
ROOM_HEIGHT equ 5
ROW_SKIP equ 23 ; 32 - ROOM_WIDTH
TOTAL_TREASURE equ 3 ; Treasures in the room
; Screen addresses for starting position (row 12, col 13)
START_ROW equ 12
START_COL equ 13
START_SCR equ $488d
START_ATT equ $598d
; Score display position (row 23, col 10)
SCORE_SCR equ $50ea ; Screen bitmap: row 23, col 10
SCORE_ATT equ $5aea ; Attribute: row 23, col 10
SCORE_LEN equ 12 ; "TREASURE n/3" = 12 characters
; Keyboard rows
KEY_ROW_QT equ $fb ; Q, W, E, R, T
KEY_ROW_AG equ $fd ; A, S, D, F, G
KEY_ROW_PY equ $df ; P, O, I, U, Y
; ROM font
FONT_BASE equ $3c00 ; Character set in ROM
; ----------------------------------------------------------------------------
; Entry point
; ----------------------------------------------------------------------------
start:
ld a, 0
out ($fe), a
; Clear screen
ld hl, $4000
ld de, $4001
ld bc, 6911
ld (hl), 0
ldir
; ==================================================================
; Draw room from data table
; ==================================================================
ld hl, $594c ; Attribute address: row 10, col 12
ld de, room_data
ld c, ROOM_HEIGHT
.row: ld b, ROOM_WIDTH
.cell: ld a, (de)
ld (hl), a
inc de
inc hl
djnz .cell
push de
ld de, ROW_SKIP
add hl, de
pop de
dec c
jr nz, .row
; ==================================================================
; Draw the player at starting position
; ==================================================================
ld a, (START_ATT)
ld (player_under), a
ld hl, START_SCR
ld de, player_gfx
ld b, 8
.initdraw: ld a, (de)
ld (hl), a
inc de
inc h
djnz .initdraw
ld a, PLAYER
ld (START_ATT), a
; Set attributes for score line
ld hl, SCORE_ATT
ld a, $47 ; BRIGHT + INK 7 (white on black)
ld b, SCORE_LEN
.sattr: ld (hl), a
inc hl
djnz .sattr
call print_score ; Show initial status
; ==================================================================
; Main loop
; ==================================================================
.loop: halt
; --- Erase player at current position ---
ld hl, (player_scr)
ld b, 8
ld a, 0
.erase: ld (hl), a
inc h
djnz .erase
ld hl, (player_att)
ld a, (player_under)
ld (hl), a
; --- Check Q (up) ---
ld a, KEY_ROW_QT
in a, ($fe)
bit 0, a
jr nz, .not_q
ld hl, (player_att)
ld de, $ffe0 ; -32 (one row up)
add hl, de
ld a, (hl)
and $07
cp WALL_INK
jr z, .not_q
call check_collect
ld (player_att), hl
ld hl, (player_scr)
ld de, $ffe0
add hl, de
ld (player_scr), hl
ld a, (player_row)
dec a
ld (player_row), a
.not_q:
; --- Check A (down) ---
ld a, KEY_ROW_AG
in a, ($fe)
bit 0, a
jr nz, .not_a
ld hl, (player_att)
ld de, 32
add hl, de
ld a, (hl)
and $07
cp WALL_INK
jr z, .not_a
call check_collect
ld (player_att), hl
ld hl, (player_scr)
ld de, 32
add hl, de
ld (player_scr), hl
ld a, (player_row)
inc a
ld (player_row), a
.not_a:
; --- Check O (left) ---
ld a, KEY_ROW_PY
in a, ($fe)
bit 1, a
jr nz, .not_o
ld hl, (player_att)
dec hl
ld a, (hl)
and $07
cp WALL_INK
jr z, .not_o
call check_collect
ld (player_att), hl
ld hl, (player_scr)
dec hl
ld (player_scr), hl
ld a, (player_col)
dec a
ld (player_col), a
.not_o:
; --- Check P (right) ---
ld a, KEY_ROW_PY
in a, ($fe)
bit 0, a
jr nz, .not_p
ld hl, (player_att)
inc hl
ld a, (hl)
and $07
cp WALL_INK
jr z, .not_p
call check_collect
ld (player_att), hl
ld hl, (player_scr)
inc hl
ld (player_scr), hl
ld a, (player_col)
inc a
ld (player_col), a
.not_p:
; --- Draw player at current position ---
ld hl, (player_scr)
ld de, player_gfx
ld b, 8
.draw: ld a, (de)
ld (hl), a
inc de
inc h
djnz .draw
ld hl, (player_att)
ld a, PLAYER
ld (hl), a
; --- Update score display ---
call print_score
; --- Border shows completion ---
ld a, (treasure_count)
cp TOTAL_TREASURE
jr nz, .not_all
ld a, 4 ; Green border — all collected
out ($fe), a
jp .loop
.not_all:
ld a, 0 ; Black border
out ($fe), a
jp .loop
; ============================================================================
; Subroutines
; ============================================================================
; ----------------------------------------------------------------------------
; check_collect — save target cell, check for treasure, collect if found
; Entry: HL = target attribute address
; Exit: HL preserved, player_under updated
; ----------------------------------------------------------------------------
check_collect:
ld a, (hl)
ld (player_under), a
bit 6, a ; BRIGHT = treasure?
ret z ; No — done
res 6, a ; Clear BRIGHT (collected)
ld (player_under), a
push hl
ld hl, treasure_count
inc (hl)
pop hl
ret
; ----------------------------------------------------------------------------
; print_score — display "TREASURE n/3" at row 23
; Destroys: A, BC, DE, HL
; ----------------------------------------------------------------------------
print_score:
ld de, SCORE_SCR ; Screen address: row 23, col 10
; Print label
ld hl, score_text
call print_str
; Print treasure count as digit
ld a, (treasure_count)
add a, '0' ; Convert to ASCII
call print_char
; Print "/" separator
ld a, '/'
call print_char
; Print total
ld a, TOTAL_TREASURE
add a, '0'
call print_char
ret
; ----------------------------------------------------------------------------
; print_str — print null-terminated string at screen address DE
; Entry: HL = string address, DE = screen address
; Exit: HL past null terminator, DE advanced past last character
; ----------------------------------------------------------------------------
print_str:
ld a, (hl)
or a ; Null terminator?
ret z
push hl ; Save string pointer
call print_char
pop hl ; Restore string pointer
inc hl
jr print_str
; ----------------------------------------------------------------------------
; print_char — draw one character to screen memory using ROM font
; Entry: A = character (32-127), DE = screen address (pixel row 0)
; Exit: DE advanced to next column (E incremented)
; ----------------------------------------------------------------------------
print_char:
push de ; Save screen position
; Look up character in ROM font
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl ; HL = character × 8
ld bc, FONT_BASE
add hl, bc ; HL = font data address
; Copy 8 pixel rows to screen
ld b, 8
.pchar: ld a, (hl)
ld (de), a
inc hl
inc d ; Next pixel row (+256 bytes)
djnz .pchar
pop de ; Restore screen address
inc e ; Next column
ret
; ============================================================================
; Room data — one byte per cell
; ============================================================================
room_data:
db WALL, WALL, WALL, WALL, WALL, WALL, WALL, WALL, WALL
db WALL, FLOOR, WALL, FLOOR, FLOOR, FLOOR, TREASURE, FLOOR, WALL
db WALL, FLOOR, TREASURE, FLOOR, FLOOR, FLOOR, WALL, FLOOR, WALL
db WALL, FLOOR, FLOOR, FLOOR, HAZARD, FLOOR, FLOOR, TREASURE, WALL
db WALL, WALL, WALL, WALL, WALL, WALL, WALL, WALL, WALL
; ============================================================================
; String data
; ============================================================================
score_text: db "TREASURE ", 0
; ============================================================================
; Player data
; ============================================================================
player_gfx: db $18, $3c, $7e, $ff
db $ff, $7e, $3c, $18
player_row: db START_ROW
player_col: db START_COL
player_scr: dw START_SCR
player_att: dw START_ATT
player_under:
db FLOOR
treasure_count:
db 0
end start

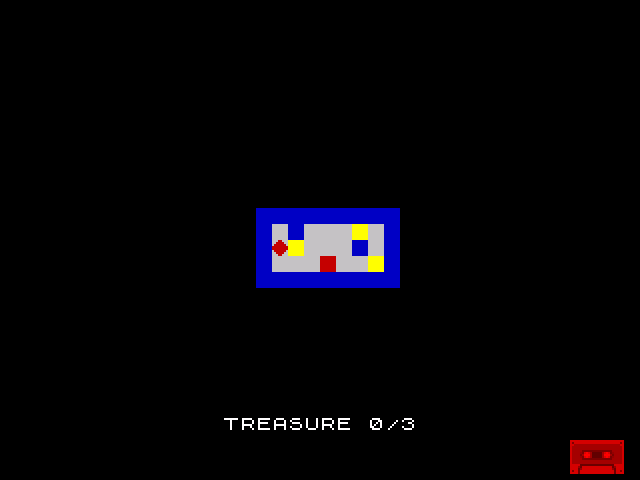

“TREASURE 0/3” sits at the bottom of the screen in bright white. The room and player are unchanged. Collect all three treasures and the counter updates to “3/3” with a green border.
The code is cleaner than Unit 10 — four CALL check_collect lines replace four copies of the collection logic. Three new subroutines (print_score, print_str, print_char) handle all text output. The subroutine pattern will grow from here.
Try This: Print Your Name
Add a title at the top of the screen. The screen address for row 0, column 0 is $4000. Set the attributes at $5800 and print a string:
ld hl, $5800
ld a, $47
ld b, 11 ; Length of your text
.tattr: ld (hl), a
inc hl
djnz .tattr
ld de, $4000
ld hl, title_text
call print_str
title_text: db "SHADOWKEEP", 0The same print_str routine works for any text at any screen position. Change the attribute to $46 (BRIGHT + INK 6) for yellow text, or $44 for green.
Try This: Two-Digit Score
If each treasure is worth 10 points, the score reaches 30. That needs two digits:
ld a, (score) ; 0-99
ld b, '0' - 1 ; Tens counter
.tens: inc b
sub 10
jr nc, .tens ; Keep subtracting 10
add a, 10 + '0' ; Remainder = units digit
push af
ld a, b ; Print tens
call print_char
pop af ; Print units
call print_charRepeated subtraction extracts the tens digit. The remainder is the units digit. No division instruction needed — the Z80 doesn’t have one.
If It Doesn’t Work
- Text is garbled after the first character? Check that
print_strsaves HL withPUSH HLbefore callingprint_charand restores it withPOP HLafter. Without this,print_chardestroys HL during the font lookup. - Characters render in the wrong place? Check the screen address. Row 23, col 10 bitmap =
$50EA. If the row or column is wrong, the text appears elsewhere. - Text is invisible? The attributes for row 23 default to
$00(black on black). Set them to$47(BRIGHT white on black) during initialisation. - Score doesn’t update?
print_scoreis called every frame in the main loop. If you only call it during init, the display is static. - check_collect corrupts the target address? Verify that PUSH HL and POP HL are balanced inside the subroutine. The treasure path pushes HL, modifies it, then pops. The non-treasure path returns early without touching HL. Both paths preserve HL for the caller.
What You’ve Learnt
- CALL and RET —
CALLpushes the return address and jumps.RETpops and returns. Subroutines eliminate duplicated code and make the program modular. - RET Z — conditional return. Skip the rest of the subroutine if a condition is met. Keeps code flat.
- ROM font at $3C00 — the Spectrum ROM contains 96 character bitmaps. Calculate the address with
char × 8 + $3C00, copy 8 bytes to screen memory withINC D. - ADD A, ‘0’ — convert a digit (0–9) to its ASCII character. One instruction, universal.
- PUSH/POP for register preservation — when a subroutine uses registers the caller needs, save them on the stack. Essential for nested calls.
- OR A — test if A is zero without comparing. Sets Z flag, one byte shorter than
CP 0. - Null-terminated strings — store text with a zero byte terminator. A loop reads until zero, printing each character.
What’s Next
The game is silent. In Unit 12, you’ll add beeper sound effects — a short tone when treasure is collected. The Spectrum’s beeper is controlled by bit 4 of port $FE. Toggle it in a timed loop and the speaker clicks. Click fast enough and you get a tone.
