Give a turn a deadline on the Amstrad CPC

Press Space and the turn counter advances. Wait a while: nothing happens. Now tap T. Keep your hands off the keyboard and the next turn arrives by itself. A turn can wait for a decision, or it can have a deadline. Those are separate choices.

Build and try it

make -C amstrad-cpc/patterns/assembly/framework/turn-deadline

Use Asm198x 0.0.71, then enter the complete generated build/loader.bas in the machine’s BASIC and RUN. Start with short Space and T taps. Reset leaves the example. The internal turn count is 16-bit; the two displayed hexadecimal digits show its low byte and wrap after FF.

The loader selects CPC464 PAL, MODE 1 and lowers HIMEM with MEMORY &8FBF before installing anything. The ten-byte caller state starts at $8FC0, the ten-byte deadline context at $8FE0, and the 326-byte executable at $9000. Two diagnostic guard bytes follow the context. Preserve firmware interrupts and keep other allocations out of these reservations.

The reusable part

Reserve a consecutive DEADLINE context of 10 bytes, then include this routine after your caller. The duration is an unsigned little-endian word at offsets 0 and 1. Set it once, sample your clock and call deadline_init. The timer starts disabled.

Pass the current clock to deadline_poll each service iteration, including while untimed. HL holds the clock word; AF/DE/HL are clobbered across the interface, while BC/IX/IY are preserved. A call uses two return-address stack bytes. The helper does not change interrupt state or allocate memory. It is one mutable context, so do not call it concurrently.

; DEADLINE owns 10 bytes. HL=low 16 clock bits. AF/DE/HL clobbered.
; Poll at least once per 65536 clock ticks. BC/IX/IY preserved.
deadline_init:
    ld (DEADLINE+8),hl
    ld hl,0
    ld (DEADLINE+2),hl
    ld (DEADLINE+6),hl
    xor a
    ld (DEADLINE+4),a
    ld (DEADLINE+5),a
    ret
deadline_start:
    ld hl,(DEADLINE)
    ld (DEADLINE+2),hl
    ld a,h
    or l
    jr z,deadline_off
    ld a,1
deadline_off:
    ld (DEADLINE+4),a
    xor a
    ld (DEADLINE+5),a
    ret
deadline_poll:
    ld de,(DEADLINE+8)
    ld (DEADLINE+8),hl
    or a
    sbc hl,de
    ld (DEADLINE+6),hl
    xor a
    ld (DEADLINE+5),a
    ld a,(DEADLINE+4)
    or a
    ret z
    ld hl,(DEADLINE+2)
    ld de,(DEADLINE+6)
    or a
    sbc hl,de
    jr c,deadline_expired
    ld a,h
    or l
    jr z,deadline_expired
    ld (DEADLINE+2),hl
    ret
deadline_expired:
    ld hl,0
    ld (DEADLINE+2),hl
    xor a
    ld (DEADLINE+4),a
    inc a
    ld (DEADLINE+5),a
    ret

Call deadline_start to copy the duration into remaining time and enable it. Writing zero to offset 4 disables it. Read offset 5 immediately after polling: an expiry is an event for this poll, rather than a flag that stays set forever. The helper disables the expired timer and holds remaining time at zero. It does not end a game turn or decide whether another deadline should start.

Connect it to a caller

The caller polls time first. If expiry and an action arrive together, expiry wins: it commits one automatic turn, starts a new deadline, and discards that iteration’s input. Otherwise Space commits a turn and restarts an already enabled timer. An untimed action stays untimed. T switches the timing policy.

dispatch:
    ld a,(DEADLINE+5)
    or a
    jr z,consider_action
    ld hl,STATE+6
    inc (hl)
    ld a,2
    ld (STATE+7),a
    call commit_turn
    jp deadline_start
consider_action:
    ld a,(STATE+8)
    cp 32
    ret nz
    ld a,1
    ld (STATE+7),a
    call commit_turn
    ld a,(DEADLINE+4)
    or a
    ret z
    jp deadline_start

The clock and input adapters provide the machine-specific part:

The CPC already has a clock. KL TIME PLEASE at $BD0D returns a count in 1/300-second units, so 600 ticks represents two seconds while firmware timekeeping continues. The caller passes its low 16 bits to the helper.

The low word wraps roughly every 218.45 seconds. Poll sooner than that; modular subtraction can handle a rollover, but cannot count an entirely missed one. Disabling interrupts for a long time stops the firmware keeping accurate time, and this firmware call enables interrupts itself. Keep that agreement visible when combining it with other code.

KM READ CHAR at $BB09 checks for a character without waiting. It consumes delivered characters, including buffered input and firmware repeat. A held Space may therefore produce further actions, and a held T may toggle repeatedly. Use short taps here; a physical held/pressed/released reader is a different adapter.

include "settings.inc"
org $9000
start:
    ei
    xor a
    ld hl,STATE
    ld b,10
clear_state:
    ld (hl),a
    inc hl
    djnz clear_state
    ld hl,DURATION
    ld (DEADLINE),hl
    call $bd0d
    call deadline_init
    call display
next_sample:
    call $bd0d
    call deadline_poll
    call $bb09
    jr c,have_key
    xor a
have_key:
    ld (STATE+8),a
    ld a,(DEADLINE+5)
    or a
    jr nz,no_toggle
    ld a,(STATE+8)
    cp 'T'
    jr z,toggle_timer
    cp 't'
    jr nz,no_toggle
toggle_timer:
    ld a,(DEADLINE+4)
    or a
    jr z,enable_timer
    xor a
    ld (DEADLINE+4),a
    jr no_toggle
enable_timer:
    call deadline_start
no_toggle:
    call dispatch
    ld a,(STATE+7)
    or a
    jr z,next_sample
    call display
    xor a
    ld (STATE+7),a
    jr next_sample
commit_turn:
    ld hl,(STATE+4)
    inc hl
    ld (STATE+4),hl
    ret
include "dispatch.inc"
include "../../../../../cross-platform/patterns/framework/elapsed-deadline/z80.inc"
display:
    ld a,12
    call $bb5a
    ld hl,label
print_label:
    ld a,(hl)
    inc hl
    or a
    jr z,print_value
    call $bb5a
    jr print_label
print_value:
    ld a,(STATE+4)
    rrca
    rrca
    rrca
    rrca
    and 15
    call hex_digit
    ld a,(STATE+4)
    and 15
hex_digit:
    ld hl,digits
    ld e,a
    ld d,0
    add hl,de
    ld a,(hl)
    jp $bb5a
label: db "SPACE:TURN T:TIMER TURN ",0
digits: db "0123456789ABCDEF"

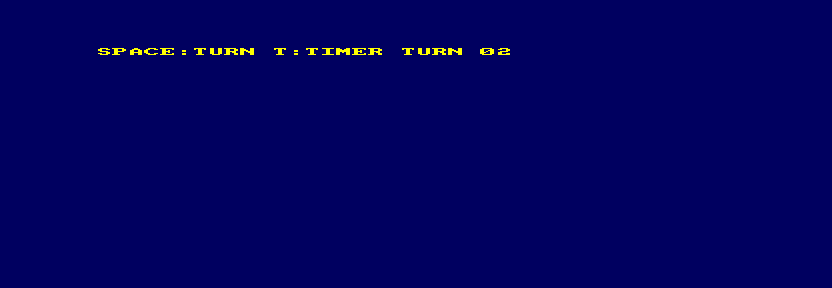

The screen redraws only after a turn changes. Replace that feedback with your own drawing or sound, while respecting the memory, port and timing owners. The example clears its text screen and does not restore the previous picture on exit.

Make it your own

Change DURATION from 600 to 300 and rebuild/re-enter the loader. The independently executed customisation uses this shorter value. The turn expires after half as many ticks, with the same helper code and state allocation.

DEADLINE equ $8fe0
STATE equ $8fc0
DURATION equ 600

Clock units matter: 100 ticks means different amounts of time with a 50 Hz field counter and a 300 Hz firmware clock. Think of duration as a quantity with a unit, not just a number. The Maths for Games material develops the same habit of choosing a representation and checking its range; no extra lesson is required to use this routine.

Common mistake: waiting for input before handling expiry

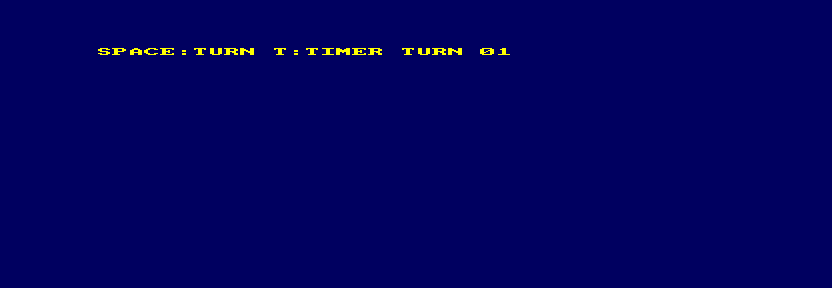

Deliberately broken include below. This adds a command test before the expiry test. With no input, the timer reaches zero and disables itself, but the displayed turn never advances. The clock kept working; the caller discarded its event.

; DELIBERATELY WRONG: ignores expiry until a command arrives.
dispatch:
    ld a,(STATE+8)
    cp 32
    ret nz
    ld a,(DEADLINE+5)
    or a
    jr z,consider_action
    ld hl,STATE+6
    inc (hl)
    ld a,2
    ld (STATE+7),a
    call commit_turn
    jp deadline_start
consider_action:
    ld a,(STATE+8)
    cp 32
    ret nz
    ld a,1
    ld (STATE+7),a
    call commit_turn
    ld a,(DEADLINE+4)
    or a
    ret z
    jp deadline_start

Keep this wrong include separate from normal builds. The fix is the working dispatch above: check expiry before asking whether a command arrived.

Limits and useful next steps

The helper subtracts consecutive 16-bit clock samples modulo 65536. For example, a move from 65530 to 5 means eleven ticks, provided a whole rollover was not missed. A 100-tick deadline then has 89 ticks left. Exact and overshot deadlines both become zero rather than wrapping into a long wait.

It reports one expiry, even after a long overrun. Restarting from the observation time does not replay all the turns that might have happened. A fixed-step accumulator, queued actions, longer clocks and carrying lateness into the next deadline are useful extensions when the game needs them; they are not hidden guarantees here. See choosing progression and clocks for the wider distinction.

The measured helper is 97 executable bytes with 10 context bytes. The complete caller is 326 bytes, plus ten caller-state bytes, two guards, stack, firmware, display and loader requirements. Polling does bounded work rather than looping once per elapsed tick. Firmware calls and display work still need measurement before claiming a whole-game frame budget.

What was checked

Code status: assembled and emulator-executed. Four fresh stock-firmware callers cover normal use, shorter duration, the input-gated mistake and a separate repaired run. The verifier types the complete loader, compares every installed code byte, checks guards and observes independent action, deadline expiry, restart and disable behaviour. The observed clock advances 180 ticks across 30 native frames.

Separate original reset-ROM fixtures execute twelve arithmetic cases, including wrap, exact/overshot expiry and zero/maximum duration. A completed wrong-branch fixture is rejected by the independent arithmetic oracle. Those CPU/RAM fixtures do not establish stock-firmware loading or display timing. No original-hardware result or general emulator certification is claimed.

The maintained caller and retained evidence include the repeatable commands. The shared routine contract explains the state layout and alternatives.

Primary references

Amstrad, CPC464 Firmware (1984), KM READ CHAR (#BB09), KL TIME PLEASE (#BD0D) and TXT OUTPUT (#BB5A). See the firmware jumpblock manual.
