Give a BASIC turn a deadline on CPC

Press Space and take a turn. Leave the keyboard alone and nothing else happens. Press T, though, and your next decision has a deadline: take too long and the next turn arrives by itself. Another T lets the world wait for you again.

That choice can change the feel of an adventure, board game or tactics game without changing its turn rule. The timer is a separate reusable piece, and your caller decides what expiry means.

Run it, then use the pieces

Run make -C amstrad-cpc/patterns/basic/framework/turn-deadline in the source checkout. Enter its build/demo.bas into a fresh BASIC program and RUN. Space advances, T enables/disables timing and Q ends. Start with brief taps: this consumes delivered characters, including firmware repeat, rather than physical press edges. The status shows counts and an active flag, not a live countdown.

The checked configuration is CPC464, 64 KiB, PAL, Locomotive BASIC 1.0, MODE 1. The caller sets MEMORY 40959, reserving &A000–&A013 for a 20-byte observer below the screen at &C000. Keep other allocations out of that range. Q does not restore the previous mode or MEMORY value; reset or restore your layout before another program.

The caller owns input and turn policy

10 MEMORY 40959:MODE 1
20 N!=0:S!=1:EX!=0:DU!=1200:LC!=0:MB!=40960
30 DC!=TIME:GOSUB 5100:GOSUB 3000
40 POKE MB!+16,165:POKE MB!+17,90
50 GOSUB 8000
100 GOSUB 5000
110 K$=UPPER$(INKEY$)
130 IF DX! THEN EX!=EX!+1:IF EX!>255 THEN EX!=0
140 IF DX! THEN GOSUB 1000:GOSUB 3100:GOSUB 8000:GOTO 100
145 IF K$="Q" THEN END
150 IF K$="T" THEN GOSUB 6000:GOSUB 8000:GOTO 100
160 IF K$<>" " THEN GOTO 190
170 GOSUB 1000
180 IF DA! THEN GOSUB 3100
185 GOSUB 8000
190 GOSUB 9000:GOTO 100
6000 IF DA! THEN DA!=0:DR!=0:RETURN
6010 GOSUB 3100:RETURN
8000 LOCATE 1,1:PRINT "SPACE:TURN T:TIMER Q:QUIT"
8010 PRINT "TURN";N!;" EX";EX!;" TIMER";DA!;"   "
8020 RETURN

Combine caller.bas, turn.bas, routines.bas, clock.bas, reduce.bas and optional monitor.bas. The Makefile builds complete alternatives. BASIC executes by line number, not file order. Reserve those ranges and update every GOSUB/GOTO target when renumbering. NEW/reset before entering another complete program so old lines cannot survive accidentally.

A bounded turn rule, separate from the timer

1000 N!=(N!+S!) AND 255:RETURN

The expression comes from the existing CPC command loop, using explicit real globals here. Keep spaces in (N!+S!) AND 255. The compact BBC spelling AND255 raises a Locomotive BASIC syntax error. A small dialect difference matters even when two routines use the same algorithm.

Take the deadline helper

Initialise, start and poll a deadline

3000 DP!=DC!:DR!=0:DA!=0:DX!=0:DE!=0:RETURN
3100 DR!=DU!:DA!=0:DX!=0
3110 IF DU!>0 THEN DA!=1
3120 RETURN
3200 DX!=0:DE!=DC!-DP!
3210 IF DE!<0 THEN DE!=DE!+65536
3220 DP!=DC!
3230 IF DA!=0 THEN RETURN
3240 DR!=DR!-DE!:IF DR!>0 THEN RETURN
3250 DR!=0:DA!=0:DX!=1:RETURN

Set DU! to a whole duration in 0..65535 and DC! to the current reduced clock sample, then GOSUB 3000 once. It records the baseline and begins disabled. GOSUB 3100 starts or restarts from the latest sample; poll immediately beforehand when that instant matters. Zero duration leaves timing disabled.

On each service iteration, including while disabled, supply DC! and GOSUB 3200. Read DX! immediately: 1 means this poll expired. The next poll/start clears it. Expiry clamps remaining to zero and disables the helper; your caller chooses whether to advance/restart.

These are shared globals; rename them consistently when combining routines. The ! suffix explicitly selects real values, so a surrounding DEFINT does not narrow them. CPC integer % variables are signed 16-bit, unlike BBC BASIC’s 32-bit integers, and cannot hold 65535. The chosen real representation holds these whole values and subtraction intermediates exactly. The helper needs neither arrays nor strings, fixed RAM, display/input ownership or a hardware timer. GOSUB uses the interpreter’s return stack; it is one mutable context rather than re-entrant code.

Read TIME without taking over the clock

Read the serviced firmware clock

5000 DC!=TIME:GOSUB 5100:GOSUB 3200:RETURN

TIME counts 1/300ths of a second. Four seconds is 1200 ticks, rather than the 400 used by the Electron/BBC adapter. The clock reader calls a small normaliser before polling the helper:

Keep the low word of an unsigned clock

5100 DC!=DC!-65536*INT(DC!/65536):RETURN

This accepts a whole clock in 0..4294967295, subtracts complete multiples of 65536 and leaves DC! in 0..65535. It is not an arbitrary real-number or negative-input API. Do not port TIME AND &FFFF blindly: CPC bitwise operations use signed integer conversion. Real division/subtraction avoids that narrower route, and the native boundary caller exercises values around 2³¹ and 2³².

Keep firmware interrupts enabled and the usual service intact. This code never sets TIME or installs an IRQ. It cannot recover ticks which that service did not count.

The low word wraps after 65536/300 ≈ 218.45 seconds. Consecutive samples must be less than 65536 ticks apart; a whole missed cycle is ambiguous. The full 32-bit clock’s rollover also reduces correctly within that limit. A clock reset is different: reinitialise/restart your context if another owner changes it.

For previous=65530 and now=5, elapsed is eleven ticks. That connects directly to Maths for Games: choose a representation, subtract modulo its range, and keep units attached to numbers. Clock ticks and display fields are different quantities.

Decide how time affects play

The caller uses UPPER$(INKEY$) to consume one character without waiting for Return, accepting normal upper/lowercase T/Q. Firmware repeat and typeahead remain possible. A held key is not promised to count once. Blocking INPUT would stop this loop servicing expiry; a clock does not make BASIC concurrent.

Time is polled before input and expiry wins over a character in that iteration, discarding even Q or T. Space restarts only an already active timer. An untimed action stays untimed. T disables/discards remaining time, or enables a fresh duration. This is restart rather than preserved pause/resume.

One overdue observation takes one turn, not a burst of catch-up turns. Restarting from observation time can drift. Carrying lateness, queued commands, several deadline contexts and fixed-step accumulation are useful alternatives when their policies fit your game.

Customise it and recognise a fault

The same helper with half the duration

10 MEMORY 40959:MODE 1
20 N!=0:S!=1:EX!=0:DU!=600:LC!=0:MB!=40960
30 DC!=TIME:GOSUB 5100:GOSUB 3000
40 POKE MB!+16,165:POKE MB!+17,90
50 GOSUB 8000
100 GOSUB 5000
110 K$=UPPER$(INKEY$)
130 IF DX! THEN EX!=EX!+1:IF EX!>255 THEN EX!=0
140 IF DX! THEN GOSUB 1000:GOSUB 3100:GOSUB 8000:GOTO 100
145 IF K$="Q" THEN END
150 IF K$="T" THEN GOSUB 6000:GOSUB 8000:GOTO 100
160 IF K$<>" " THEN GOTO 190
170 GOSUB 1000
180 IF DA! THEN GOSUB 3100
185 GOSUB 8000
190 GOSUB 9000:GOTO 100
6000 IF DA! THEN DA!=0:DR!=0:RETURN
6010 GOSUB 3100:RETURN
8000 LOCATE 1,1:PRINT "SPACE:TURN T:TIMER Q:QUIT"
8010 PRINT "TURN";N!;" EX";EX!;" TIMER";DA!;"   "
8020 RETURN

This changes only DU!=1200 to 600: roughly four seconds becomes two. S! remains a whole step in 0..255 for the byte-wrapping counter. Replace the turn effect with your own game rules while keeping the helper independent.

The following adapter is deliberately wrong.

Broken: discard elapsed time before polling

5000 DC!=TIME:GOSUB 5100:DP!=DC!:GOSUB 3200:RETURN

It replaces the previous sample with now just before subtracting. Elapsed is always zero. The native clock advances, but remaining stays full and no automatic turn arrives.

Do not include correct and wrong adapters together: their line numbers deliberately replace each other. Only initialisation should discard the baseline without consuming elapsed time.

A syntax error is another reason for apparently frozen diagnostics. It stops the interpreter and leaves the last completed mailbox unchanged. A completion marker establishes a coherent snapshot, not continued execution; check clock/state progress as well.

Resources and costs

The native interpreter stored 277 tokenised helper bytes and 1,311 bytes in the complete diagnostic program, including line headers and terminator. Seven helper real values have 35 bytes of numeric payload, derived from their format. Names, interpreter bookkeeping, expression temporaries and return-stack use are additional and not isolated here; this is not a peak-heap claim.

The optional observer reserves another 20 bytes and owns MB!, LC!, V!, O!, H!, M!, guards and completion marker. Remove GOSUB 9000, the guard/MB!/LC! setup and monitor.bas when omitting it. Caller globals N!, S!, EX!, K$ remain separate from helper state.

One recorded idle service sample was 40 firmware ticks after its predecessor, about 0.133 seconds with diagnostics present. That includes interpreted caller/observer work, not an isolated helper benchmark. The helper performs bounded subtraction rather than one iteration for every missed tick. The observer serialises four three-byte values and flags every service, which costs time. Redraw occurs only on actions, toggles and expiry. Measure actual game work before making frame-budget claims.

9000 POKE MB!+19,0
9010 POKE MB!,N!:POKE MB!+1,EX!:POKE MB!+2,DA!
9020 V!=DR!:O!=3:GOSUB 9100
9030 V!=DC!:O!=6:GOSUB 9100
9040 V!=DU!:O!=9:GOSUB 9100
9050 V!=DE!:O!=12:GOSUB 9100
9060 LC!=LC!+1:IF LC!>255 THEN LC!=0
9070 POKE MB!+18,LC!:POKE MB!+19,239:RETURN
9100 H!=INT(V!/65536):V!=V!-H!*65536
9110 M!=INT(V!/256):V!=V!-M!*256
9120 POKE MB!+O!,V!:POKE MB!+O!+1,M!:POKE MB!+O!+2,H!:RETURN

What was checked

Code status: emulator-executed BASIC. Working, half-duration, baseline-reset and repaired callers were cold-booted and typed into Emu198x 0.44.1. Native tokenised line inventories/lengths, guarded state and captures are retained; no debugger writes set up a passing result. Untimed idle/action, countdown without input, active restart, no-input expiry and disabling were checked.

A second native caller runs twelve synthetic-clock cases, including unsigned high-clock reduction, zero/max duration, wrap and exact/overshot expiry. Changing >0 to >=0 completes but must fail the same independent oracle. Synthetic samples establish arithmetic, not a wall-clock run over a complete rollover.

The working idle window advanced 607 ticks in 102 native fields, including mailbox settling and sample age. That supports this 300 Hz serviced clock; it does not promise one-tick response latency. Retained checks reject changed inputs, missing variants and falsified observations. No original-hardware, other-ROM, minimum-RAM or whole-game performance claim is made.

The maintained source and evidence include repeatable build/qualification commands. The second caller uses the same helper and clock normaliser without the game’s input policy.

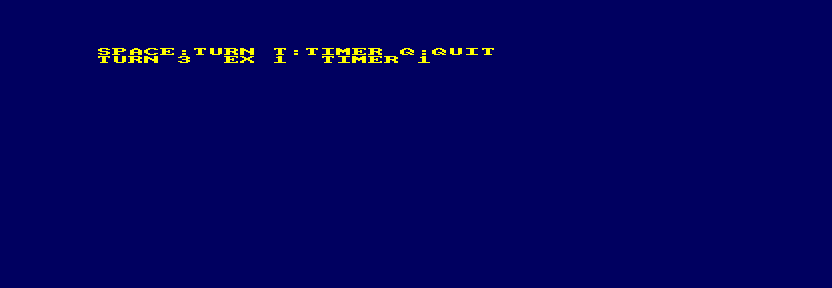

Primary sources: Amstrad CPC464 User Instructions, chapter 8, data types, TIME, INKEY$, UPPER$ and MEMORY; CPC464 Firmware Manual, KL TIME PLEASE (&BD0D). Captures show Code198x’s own program output in Emu198x 0.44.1, with native geometry preserved.
