Wait for a new fire press on Atari XL

Press joystick-one fire: TURN 00 becomes TURN 01. Hold it: the loop keeps running, but the turn counter waits. Release and press again for TURN 02. The digits are hexadecimal.

The reusable routine decides whether a sampled button is newly pressed. A separate wait controls when the caller samples; another routine draws the result. That keeps “take a turn” separate from “service the display”.

Start the complete caller

Build with make. In stock Atari BASIC on an 800XL NTSC, enter the complete generated build/loader.bas, then RUN. Each numbered line needs time to be accepted. The loader selects GRAPHICS 0, positions TURN 00 at column zero, installs the 177-byte program at $0600, then uses X=USR(1536) to enter it.

The code ends at $06B1, before the seven-byte context at $06E0–$06E6. Two diagnostic guards follow at $06E7–$06E8. The assembler rejects code/context overlap. Page six is available under the stock OS/BASIC setup used here; another language, extension or page-six routine can already own it. Long BASIC INPUT operations can use part of it as an overflow buffer. Do not assume the whole page is free in every project.

Download the caller and shared files as part of the samples tree, preserving relative include paths. The checked assembler is Asm198x 0.0.71. No manufacturer firmware is included.

Initialise once, service a field, sample fire and draw accepted turns

!source "settings.inc"
* = $0600
start:
    pla                       ; consume USR's zero argument count
    cld
    lda #INITIAL
    jsr init_turn
    lda #STEP
    sta T+5
    lda #165
    sta T+7
    lda #90
    sta T+8
    jsr draw_counter
main:
    jsr wait_frame
    jsr service_tick
    lda $0284                 ; STRIG0, maintained by normal OS VBI
    eor #1
    and #1
    jsr sample_turn
    lda T+6
    beq main
    jsr draw_counter
    jmp main
!source "frame.inc"
!source "../../../../../cross-platform/patterns/framework/atari-turn-loops/turn.inc"
draw_counter:
    lda T
    lsr
    lsr
    lsr
    lsr
    ldy #5
    jsr digit
    lda T
    and #15
    iny
digit:
    tax
    lda screen_digits,x
    sta ($58),y               ; current SAVMSC, not a fixed display address
    rts
screen_digits:
    !byte 16,17,18,19,20,21,22,23,24,25,33,34,35,36,37,38
code_end:
!if code_end > T { !error "Caller overlaps its state" }

Put the routine in your project

Define T as seven private, consecutive RAM bytes. Include the routine once. Pass the starting counter in A and call init_turn at startup; it clears the other state and sets the step to one. Store another step in T+5 after that call if needed.

Reusable turn and service counters, with no hardware access

; Caller defines T as the first of seven disjoint private RAM bytes.
; T+0 turns, +1 previous sample, +2/+3 serviced fields, +4 current,
; +5 step size, +6 accepted flag. Decimal mode must be clear.
; init_turn: A = initial counter; initialises all seven bytes, step=1.
init_turn:
    sta T
    lda #0
    sta T+1
    sta T+2
    sta T+3
    sta T+4
    sta T+6
    lda #1
    sta T+5
    rts
; sample_turn: A = active-high button mask, same bit convention each call.
; Changes A/flags, preserves X/Y. Counter wraps modulo 256.
; No hardware access or waiting. 2 stack bytes for a direct JSR.
sample_turn:
    sta T+4
!source "edge-filter.inc"
    beq held_or_released
    lda T
    clc
    adc T+5
    sta T
    lda #1
    sta T+6
    bne remember_sample
held_or_released:
    lda #0
    sta T+6
remember_sample:
    lda T+4
    sta T+1
    rts
; One accepted display-service tick, independent of rule progression.
; Changes flags only; wraps at 65536. Call exactly once per serviced field.
service_tick:
    inc T+2
    bne tick_done
    inc T+3
tick_done:
    rts
turn_end:

Pass an active-high button sample in A to sample_turn, using the same bit convention every time. Test T+6 for a newly accepted press. Keep the previous sample between calls.

Call service_tick once per serviced field if you want that diagnostic. Its counter keeps advancing while the player waits; the turn counter does not. It is not an elapsed-time clock when work misses fields.

Keep decimal mode clear; the complete caller uses CLD. init_turn and sample_turn clobber A/flags and preserve X/Y. service_tick changes flags and preserves A/X/Y. The reusable code occupies 77 bytes in this layout, plus the seven-byte context. A direct JSR needs two return-address stack bytes; the caller and OS interrupts need additional stack space. The routines allocate no heap, install no handler and touch no video or input hardware. Give the context one owner at a time.

Why this wait belongs to this machine

The hardware-specific synchronisation point

; OS VBI owns RTCLOK. A/flags clobbered. Normal IRQs must stay enabled.
wait_frame:
    lda $14
wait_tick:
    cmp $14
    beq wait_tick
    rts

wait_frame waits for the low byte of RTCLOK at $14 to change. The normal OS vertical-blank service maintains that clock and the active-low STRIG0 shadow at $0284. The caller inverts and masks the trigger to get an active-high sample. It keeps normal interrupts running and installs no handler.

The wait clobbers A/flags and preserves X/Y. A stopped or replaced OS VBI can make it stall. A changed clock byte is a synchronisation opportunity; it does not tell us how many fields passed. A long operation can miss fields, and a delay of 256 ticks can hide whole low-byte wraps. Deadlines need a properly sampled elapsed-time source and an expiry policy.

The display helper follows SAVMSC at $58/$59. The caller owns the first text row, while the OS continues to own its normal display and keyboard services. Its USR entry consumes the argument-count byte with PLA; that belongs to the BASIC entry wrapper, not inside ordinary JSR routines. This complete caller stays in its loop and does not return a BASIC result. Reset/reload to leave it.

Both implementations accept one observation per serviced field. A very short tap between samples can be missed. An event queue, deliberate key repeat or independent animation clock needs a separate contract.

Make it your own

Allocate the context and choose initial count and step

T = $06e0
INITIAL = 0
STEP = 1

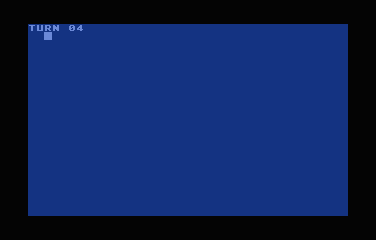

Replace settings.inc with the maintained customisation below and rebuild. Two presses now give 00 → 02 → 04, while holding either press adds nothing further.

Customisation: add two per newly pressed fire

T = $06e0
INITIAL = 0
STEP = 2

This changes an initial constant; it does not enlarge the routine or context. A wider counter, saturating arithmetic, another input device or different interrupt ownership needs new code and checks. The maintained wrap case starts at 254 for 254 → 255 → 0; a nonzero start of 37 checks that initialisation actually arrives.

Common mistake: held input becomes repeated turns

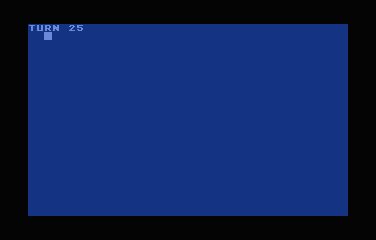

The next filter is deliberately wrong. It keeps the current held sample without excluding the previous one. The counter runs away while fire stays down.

Broken filter: held fire is treated as newly pressed

; Deliberately wrong: a held bit is treated as a new press every sample.
    lda T+4

Restore the original filter and preserve previous state between calls. The verified working progression is 0 → 1 → 1 → 2: first press, continued hold, release and second press. The native checks also build and execute an independent repair.

Common mistake: counting CPU iterations as fields

Deliberately broken wait: return immediately

wait_frame:
    rts

Removing the wait leaves the rule’s press filter intact, but the service counter now follows instruction speed. This faulty build produces 6015 service ticks in 30 native fields, so the normal field-rate guard rejects it. A still screenshot cannot show that timing failure. Restore frame.inc, then measure again; the repaired build returns to 30 service ticks in the measured 30-field window.

Neither a wait nor assembly makes unlimited work fit. Measure the real game’s rendering and simulation costs. These small NTSC callers establish one workload; they do not qualify PAL timing or a complete frame budget.

Keep presentation outside the rule

The text helper converts the byte count into Atari internal screen codes and writes two cells in the first row. Explicit cursor placement matters: BASIC’s normal left margin is not column zero. Moving the label without moving those writes gives a visibly damaged label even though the turn state itself is correct.

The game-loop comparison explains progression, input and time as separate choices. The Atari XL BASIC command loop keeps a blocking numeric reader instead. It is useful for a world that can wait for a submitted command.

What we checked

Code status: native emulator-executed, using Emu198x 0.44.1, Asm198x 0.0.71 and the firmware identities in the execution record.

Eight fresh cases cover working/customised callers, nonzero initial state, byte wrap, held-as-press and missing-wait faults, and separate repairs of each fault. Real input drives guest state; checks cover idle, held, released and second-press behaviour, service counts and adjacent guards. The whole BASIC loader is typed, and installed machine-code bytes are compared with the assembler output. All 32 native captures and source/observer/tool identities are retained. The record checker rejects missing evidence and false behaviour; it checks saved observations rather than rerunning the emulator.

Sources

Atari, Atari BASIC Reference Manual, revision C, USR stack convention; Ian Chadwick, Mapping the Atari, RTCLOK 18–20, STRIG0 644, SAVMSC 88–89 and page six 1536–1791. The named API is checked against the stock 800XL configuration rather than assumed from its CPU’s other machines.
