Pick the Nearest Active Target in BBC Micro BASIC

A homing enemy needs a rule for choosing its target. Choosing a different equal-distance target every update can look indecisive. This query uses a small, stable rule: shortest Manhattan distance, then lowest slot number.

Include and initialise

DIM A(4) and B(4) for candidate X/Y coordinates. Reserve public S/L/H/F/O/M/X/Y and private I/P/T/U. Reserve numbered lines 3000–3250, combine routines.bas and a caller with build.py and keep END, STOP or a jump before the helper. C64/BBC use GOSUB; Spectrum uses GO SUB. Private I must not be an outer caller’s FOR variable.

Call 3000 at a reset boundary. It clears all public fields and both arrays. Supply origin X/Y, candidate arrays and active mask M afterwards. The low four mask bits select slots 0..3; high bits are ignored.

Query active candidates

Call 3100. A valid query sets O=1. If a target is active, F=1, S is its zero-based slot and the distance is L+256*H, from zero to 510. No active target returns S=255,F=0,L=H=0. Check F before indexing a candidate array.

Origin, mask and active candidate coordinates must be integral bytes. Invalid input returns O=0 and the same empty-result outputs. Inactive candidate coordinates are ignored. This BASIC guard adds explicit numeric validation to the assembly example’s byte-input representation.

The reusable routine

Reusable numbered routines

3000 LET S=0: LET L=0: LET H=0: LET F=0: LET O=0: LET M=0: LET X=0: LET Y=0
3010 FOR I=1 TO 4: LET A(I)=0: LET B(I)=0: NEXT I: RETURN
3100 LET S=255: LET L=0: LET H=0: LET F=0: LET O=0
3110 IF M<0 OR M>255 OR M<>INT (M) THEN RETURN
3120 IF X<0 OR X>255 OR X<>INT (X) THEN RETURN
3130 IF Y<0 OR Y>255 OR Y<>INT (Y) THEN RETURN
3140 FOR I=1 TO 4: LET P=2^(I-1): LET T=INT (M/P)-2*INT (M/(2*P))
3150 IF T=0 THEN GOTO 3180
3160 IF A(I)<0 OR A(I)>255 OR A(I)<>INT (A(I)) THEN RETURN
3170 IF B(I)<0 OR B(I)>255 OR B(I)<>INT (B(I)) THEN RETURN
3180 NEXT I: LET O=1: LET U=511
3190 FOR I=1 TO 4: LET P=2^(I-1): LET T=INT (M/P)-2*INT (M/(2*P))
3200 IF T=0 THEN GOTO 3230
3210 LET T=ABS (X-A(I))+ABS (Y-B(I))
3220 IF T<U THEN LET U=T: LET S=I-1: LET F=1
3230 NEXT I
3240 IF F=0 THEN RETURN
3250 LET H=INT (U/256): LET L=U-256*H: RETURN

Distance is the absolute horizontal difference plus the absolute vertical difference. The helper keeps that sum wide enough for 510 before splitting it into two returned bytes. It replaces the best candidate only for a strictly smaller distance, keeping the earlier slot on a tie.

Supply the real active mask

The normal caller has two targets one Manhattan unit from the origin; slot 1 wins the tie. The custom caller works near the far corner of the byte range with two targets ten units away. Later calls check no active targets and ignored high mask bits.

Example calls from the maintained caller

100 GOSUB 3000: LET AA=0: LET BB=0
110 LET A(1)=0: LET A(2)=51: LET A(3)=49: LET A(4)=50
120 LET B(1)=0: LET B(2)=50: LET B(3)=50: LET B(4)=80
130 LET X=50: LET Y=50: LET M=15
140 GOSUB 3100: GOSUB 2000
150 IF S=1 THEN LET AA=1
160 IF L+256*H=1 THEN LET BB=1
170 LET M=0: GOSUB 3100: GOSUB 2000
180 LET M=255: GOSUB 3100: GOSUB 2000
190 LET M=16: GOSUB 3100: GOSUB 2000
200 PRINT "NEAR RESULTS";AA;BB
210 ?(MB+995)=AA: ?(MB+996)=BB: ?(MB+997)=GD: ?(MB+998)=WC-256*INT (WC/256): ?(MB+999)=INT (WC/256): ?(MB+1000)=239: STOP

The diagnostic’s line 2000, AA/BB/JJ/KK (Z/Q on Spectrum) and mailbox can be removed. A game supplies M/X/Y/A/B, calls 3100 and uses the result after checking O/F. Array index is S+1, because returned slots are zero-based and these arrays are one-based.

Customise the metric

Manhattan distance suits grid-like movement. It is not straight-line distance: a target at (3,0) is nearer by Manhattan distance than (2,2), while the latter is nearer in Euclidean distance. Choose the rule the game needs rather than treating one metric as universally correct.

Squared Euclidean distance avoids a square root but needs multiplication and wider intermediate sums. More targets may justify a spatial index or a different search policy. Wider BASIC coordinates are possible, but require wider input/output bounds and renewed verification; the byte example’s distance limit must not be silently reused.

Mistake and repair

The wrong caller marks only slot zero active, excluding nearer candidates. It returns a valid result for the wrong candidate set, and both saved checks fail. Pass the actual occupancy mask and check F before using S. The repair matches the normal source and loaded program exactly.

Cost and Maths for Games

The helper validates at most four active pairs and computes at most four distances. BASIC arithmetic can represent the 0..510 sum directly; L/H retain the shared assembly-facing result contract. Do not discard H: opposite corners have Manhattan distance 510, not 254. No cycle or whole-game budget is inferred.

Maths for Games connects absolute differences, distance metrics, ties and numeric width. The Craft connects a stable target rule to readable enemy behaviour and when switching targets should happen.

Global names and line numbers

BASIC numeric names, arrays and numbered lines are global. To combine helpers, rename public and private fields and renumber the helper together with every GO SUB/GO TO reference. Keep each state block under one owner. The maintained build.py rejects duplicate line numbers; it does not automatically namespace or renumber routines.

Machine and measured size

BBC BASIC arrays include element zero; this one-based array interface leaves it unused. Its diagnostic uses MODE 7 and HIMEM=&6000 to separate program storage, mailbox and screen. The helper itself changes neither mode nor HIMEM.

The numbered helper occupies 620 tokenised program bytes on this interpreter, including line headers. This excludes the caller, test tables, numeric scalar/array storage, interpreter stacks and ROM. Tokenised size is not machine-code size or a hardware-cycle count. No real-time or whole-game performance budget is inferred from the diagnostic. The caller’s AA/BB, JJ/KK and RAM mailbox are observation machinery, not required game state.

Execution evidence

Working, custom, deliberately wrong and exact repaired callers executed through BBC Micro’s stock BASIC interpreter under Emu198x 0.44.2. Build198x 0.2.9 tokenises C64 PRG and Spectrum TAP programs. C64 enters stock RUN, Spectrum uses ROM tape loading, and BBC enters every numbered source line through MOS/BASIC. Actual loaded program bytes, complete state packets, positive completion/count/guards and visible result pixels are checked. After the positive completion marker, the observer advances two complete display frames before capturing, so a partially scanned final character cannot masquerade as a finished picture. Firmware is not distributed.

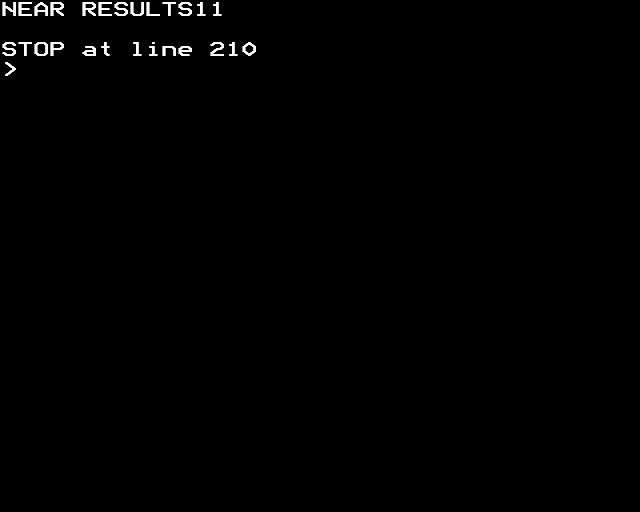

An independent mathematical/order model checks the trace and rejects altered source, configuration, loaded program, state, completion and image evidence. Host exhaustive checks complement the native boundary/sequential examples; those host ranges are not claimed as natively exhaustive. The supplied diagnostic callers deliberately end with STOP; the interpreter report is expected. The wrong caller prints 0,0 and the normal/custom/repaired callers print 1,1.

Public CI checks retained evidence; it does not execute restricted firmware. Refresh with python3 scripts/verify-basic-geometry.py nearest-target bbc-micro --tools /path/to/extracted/releases and inspect with python3 scripts/check-basic-geometry.py nearest-target.

Explore further

Compare the assembly technique. The BASIC game-flow routine makes session boundaries explicit. Complete source and native evidence.
