Four quarter-pixel updates should move a sprite one whole pixel. If the game throws away the quarter after every update, it never gets there. Keep the fraction in state and discard it only when a particular renderer needs a whole-pixel coordinate.
Include and initialise
Reserve public L/H/U/V/O and private T. Reserve lines 3000–3160, combine routines.bas and a caller with build.py and keep END, STOP or a jump before the helper. C64/BBC use GOSUB; Spectrum uses GO SUB. Private T belongs to the call.
Call 3000 at a new-state boundary. It clears all fields. Set position L/H and displacement U/V afterwards. The low byte comes first in each pair.
Add one fixed-point displacement
Position is unsigned 8.8: L holds 1/256-unit fractions and H its whole-unit part. U/V is a signed two’s-complement 8.8 displacement. Call 3100 once per intended simulation update. The full word is added, position wraps modulo 65,536 raw units and U/V survive.
| Field | Use |
|---|---|
| L / H | Retained fractional / whole position bytes |
| U / V | Low/high signed displacement bytes; preserved |
| O | Fresh valid-input flag |
All four fields must be integral bytes. Invalid input returns O=0 and preserves both pairs; success returns O=1. This is an explicit BASIC numeric guard. The helper owns no timer, velocity calculation, display or world boundary.
One raw unit is 1/256 of your chosen world unit. A quarter unit is U=64,V=0. Negative half a unit is U=128,V=255: signed word FF80 in hexadecimal. These are units per service call, not per second. An update rate belongs to the caller.
The reusable routine
Reusable numbered routines
3000 LET L=0: LET H=0: LET U=0: LET V=0: LET O=0: RETURN
3100 LET O=0
3110 IF L<0 OR L>255 OR L<>INT (L) THEN RETURN
3120 IF H<0 OR H>255 OR H<>INT (H) THEN RETURN
3130 IF U<0 OR U>255 OR U<>INT (U) THEN RETURN
3140 IF V<0 OR V>255 OR V<>INT (V) THEN RETURN
3150 LET T=L+256*H+U+256*V: LET T=T-65536*INT (T/65536)
3160 LET H=INT (T/256): LET L=T-256*H: LET O=1: RETURNUnsigned addition followed by modulo 65,536 has the same wrapped result as adding the signed two’s-complement displacement. BASIC’s numeric intermediate can hold the complete sum before it is reduced. The fractional carry is retained rather than discarded.
Accumulate small steps
The normal caller starts at 100 and adds 0.25 four times, reaching 101 exactly. The custom caller uses 0.5 and reaches 102. Later calls apply a negative half step and a zero displacement while retaining the resulting fraction.
Example calls from the maintained caller
70 GOSUB 3000: LET AA=0: LET BB=0
80 LET L=0: LET H=100: LET U=64: LET V=0: FOR JJ=1 TO 4
90 GOSUB 3100: GOSUB 2000: NEXT JJ
100 IF H=101 THEN LET AA=1
110 IF L=0 THEN LET BB=1
120 LET U=128: LET V=255: GOSUB 3100: GOSUB 2000
130 LET U=0: LET V=0: GOSUB 3100: GOSUB 2000
140 PRINT "STEP RESULTS";AA;BB
150 ?(MB+995)=AA: ?(MB+996)=BB: ?(MB+997)=GD: ?(MB+998)=WC-256*INT (WC/256): ?(MB+999)=INT (WC/256): ?(MB+1000)=239: STOPLine 2000, AA/BB/JJ (Z on Spectrum) and the mailbox are observations. A game retains L/H, supplies U/V and calls 3100. H is suitable as an integer coordinate only for a renderer whose coordinate envelope fits; keep L even when it is not drawn.
Customise representation
BASIC can also keep an ordinary real-valued position and use an integer view for drawing. That can be simpler. This word representation is useful when sharing an exact binary format, comparing native implementations or choosing fixed fractions deliberately; BASIC numeric variables themselves do not occupy one byte each.
The position covers zero through 255 and 255/256 world units and wraps by design. Wrapping is not a substitute for a clamp, collision response or a larger world coordinate. Wider positions or a different fractional split require matching arithmetic, storage and verification. Do not silently reuse the byte-facing result contract for a wider renderer.
Mistake and repair

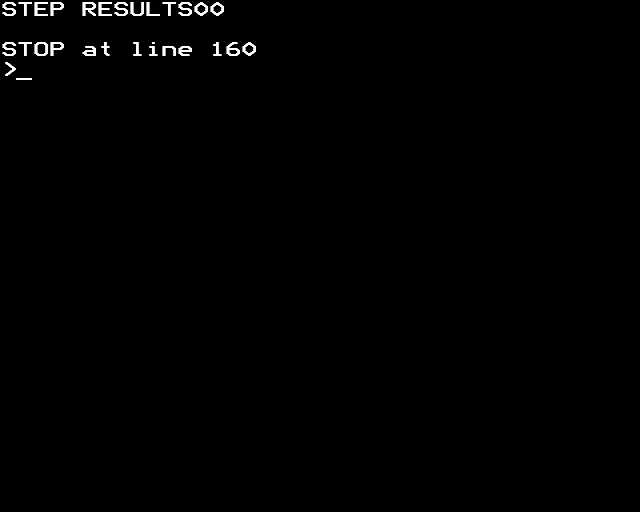

The wrong caller clears L before every update. Each quarter step starts again from the whole position, so four calls leave 100.25 rather than 101. Both saved checks fail. Preserve the fraction in game state; ignoring it only for display is harmless. The repair matches normal source and loaded program exactly.
Cost and Maths for Games
A call performs fixed validation and one bounded word addition/reduction. There are no arrays or helper allocations. Tokenised listing size and BASIC numeric storage are different costs from the four packed state bytes used by a native implementation. No cycle budget is claimed.
Maths for Games connects fixed point, carries, signed words and update units. The Craft connects retained sub-unit motion to smooth acceleration and consistent slow movement.
Global names and line numbers
BASIC numeric names, arrays and numbered lines are global. To combine helpers, rename public and private fields and renumber the helper together with every GO SUB/GO TO reference. Keep each state block under one owner. The maintained build.py rejects duplicate line numbers; it does not automatically namespace or renumber routines.
Machine and measured size
This helper uses scalar numeric fields and allocates no arrays. Its diagnostic uses MODE 7 and HIMEM=&6000 to separate program storage, mailbox and screen. The helper itself changes neither mode nor HIMEM.
The numbered helper occupies 273 tokenised program bytes on this interpreter, including line headers. This excludes the caller, test tables, numeric scalar/array storage, interpreter stacks and ROM. Tokenised size is not machine-code size or a hardware-cycle count. No real-time or whole-game performance budget is inferred from the diagnostic. The caller’s AA/BB, JJ and RAM mailbox are observation machinery, not required game state.
Execution evidence
Working, custom, deliberately wrong and exact repaired callers executed through BBC Micro’s stock BASIC interpreter under Emu198x 0.44.2. Build198x 0.2.9 tokenises C64 PRG and Spectrum TAP programs. C64 enters stock RUN, Spectrum uses ROM tape loading, and BBC enters every numbered source line through MOS/BASIC. Actual loaded program bytes, complete state packets, positive completion/count/guards and visible result pixels are checked. After the positive completion marker, the observer advances two complete display frames before capturing, so a partially scanned final character cannot masquerade as a finished picture. Firmware is not distributed.

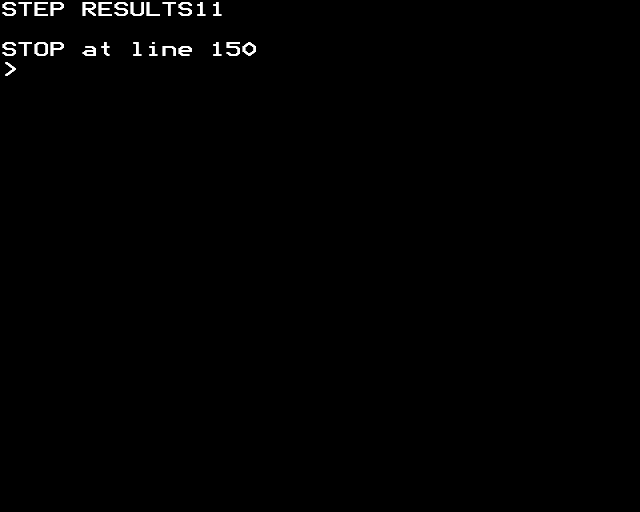

An independent mathematical/order model checks the trace and rejects altered source, configuration, loaded program, state, completion and image evidence. Host exhaustive checks complement the native boundary/sequential examples; those host ranges are not claimed as natively exhaustive. The supplied diagnostic callers deliberately end with STOP; the interpreter report is expected. The wrong caller prints 0,0 and the normal/custom/repaired callers print 1,1.
Public CI checks retained evidence; it does not execute restricted firmware. Refresh with python3 scripts/verify-basic-motion.py fractional-position bbc-micro --tools /path/to/extracted/releases and inspect with python3 scripts/check-basic-motion.py fractional-position.
Explore further
Compare the assembly technique. The BASIC game-flow routine makes session boundaries explicit. Complete source and native evidence.
