A ball reaches the wall with five units of travel still to use. Stopping it there throws away movement and changes its speed. This routine reflects and spends the remaining travel, even when a narrow interval causes several bounces in one update.
Include and initialise
Reserve public P/A/B/D/S/C/O and private I. Reserve numbered lines 3000–3240, combine routines.bas and a caller with build.py and keep END, STOP or a jump before the helper. C64/BBC use GOSUB; Spectrum uses GO SUB. Private I must not be an outer caller’s FOR variable.
Call 3000 for a new state. It clears every public field. Set position P, inclusive minimum A/maximum B, requested distance D and direction S afterwards. S=0 moves towards A; S=1 towards B. Retain P/S between updates.
Spend the whole distance
Call 3100. A valid request sets O=1, updates P/S and returns reflection count C. A and B must be integral byte bounds with A < B, P must be inside them, D an integral byte, and S either zero or one. Invalid input returns C=0,O=0 and preserves P/S and the request fields.
| Field | Use |
|---|---|
| P / S | Retained position and direction |
| A / B / D | Inclusive bounds and requested travel; preserved |
| C / O | Reflections this call / valid flag |
Landing exactly on an endpoint does not reflect yet. Reflection happens before a subsequent unit step would leave the interval. Moving from zero to ten with distance ten can finish at ten still facing right; the next outward step flips direction and moves to nine. A zero-distance request is valid and changes neither position nor direction.
The reusable routine
Reusable numbered routines
3000 LET P=0: LET A=0: LET B=0: LET D=0: LET S=0: LET C=0: LET O=0: RETURN
3100 LET C=0: LET O=0
3110 IF P<0 OR P>255 OR P<>INT (P) THEN RETURN
3120 IF A<0 OR A>255 OR A<>INT (A) THEN RETURN
3130 IF B<0 OR B>255 OR B<>INT (B) THEN RETURN
3140 IF D<0 OR D>255 OR D<>INT (D) THEN RETURN
3150 IF S<>0 AND S<>1 THEN RETURN
3160 IF A>=B OR P<A OR P>B THEN RETURN
3170 LET O=1
3180 IF D=0 THEN RETURN
3190 FOR I=1 TO D
3200 IF S=0 AND P=A THEN LET S=1: LET C=C+1
3210 IF S=1 AND P=B THEN LET S=0: LET C=C+1
3220 IF S=0 THEN LET P=P-1: GOTO 3240
3230 LET P=P+1
3240 NEXT I: RETURNThe bounded unit-step loop makes each reflection rule easy to inspect. It explicitly returns before a zero-distance FOR loop, avoiding dialect-dependent empty-loop behaviour. Every accepted step remains inside the bounds.
Retain the reflected state
The normal caller starts at eight inside [0,10], moving right by seven. It reaches ten, reflects and spends five more units to finish at five facing left. The custom caller uses a narrower [0,3] interval and needs two reflections in its first call. Further calls keep position and direction, then exercise zero distance and an invalid direction.
Example calls from the maintained caller
70 GOSUB 3000: LET AA=0: LET BB=0
80 LET P=8: LET A=0: LET B=10: LET D=7: LET S=1
90 GOSUB 3100: GOSUB 2000
100 IF P=5 AND C=1 THEN LET AA=1
110 IF D=7 THEN LET BB=1
120 FOR JJ=1 TO 3: GOSUB 3100: GOSUB 2000: NEXT JJ
130 LET D=0: GOSUB 3100: GOSUB 2000
140 LET S=2: GOSUB 3100: GOSUB 2000
150 PRINT "BOUN RESULTS";AA;BB
160 POKE MB+995,AA: POKE MB+996,BB: POKE MB+997,GD: POKE MB+998,WC-256*INT (WC/256): POKE MB+999,INT (WC/256): POKE MB+1000,239: STOPLine 2000, AA/BB/JJ (Z on Spectrum) and the mailbox observe those calls. A game supplies bounds and travel, calls 3100 and retains both P and S. Final position alone is not enough to describe the motion: different travel can fold back to the same point.
Customise the range
D is travel per service call, not a velocity with its own clock. A game can derive it from another movement component, but must make units and rounding explicit. The bounds are inclusive positions, unlike the half-open rectangle edges used by clipping and sweep queries.
The loop makes at most 255 unit steps. A folded-coordinate formula can reduce work for large distances, but must preserve the endpoint and direction rules and report the same number of reflections. The independent verifier uses a mathematical folded reference; it is not a separately qualified BASIC replacement. Moving boundaries and damped bounces need another contract.
Mistake and repair
The wrong caller reduces D to one. It loses intended travel and changes speed instead of preserving the distance after a bounce. Both saved checks fail. Pass the full requested distance; choose a faster verified algorithm if the readable loop is too expensive. The repair matches normal source and loaded program exactly.
Cost and Maths for Games
Work grows with D, from zero through 255 unit iterations. A one-unit-wide interval can reflect on every step, so C may reach 255. No allocation, display update or timer occurs here. BASIC numeric fields and interpreter overhead remain separate from tokenised code size; no frame budget is claimed.
Maths for Games connects reflection, triangle waves, modulo arithmetic and endpoint conventions. The Craft connects conserved travel to consistent bounce speed and predictable movement.
Global names and line numbers
BASIC numeric names, arrays and numbered lines are global. To combine helpers, rename public and private fields and renumber the helper together with every GO SUB/GO TO reference. Keep each state block under one owner. The maintained build.py rejects duplicate line numbers; it does not automatically namespace or renumber routines.
Machine and measured size
C64 BASIC V2 recognises only the first two significant characters of numeric variable names. Short names make the ownership visible; check for collisions before including another component. This helper uses scalar numeric fields and allocates no arrays. The diagnostic uses a mailbox at $C000, outside the normal BASIC heap.
The numbered helper occupies 408 tokenised program bytes on this interpreter, including line headers. This excludes the caller, test tables, numeric scalar/array storage, interpreter stacks and ROM. Tokenised size is not machine-code size or a hardware-cycle count. No real-time or whole-game performance budget is inferred from the diagnostic. The caller’s AA/BB, JJ and RAM mailbox are observation machinery, not required game state.
Execution evidence
Working, custom, deliberately wrong and exact repaired callers executed through C64’s stock BASIC interpreter under Emu198x 0.44.2. Build198x 0.2.9 tokenises C64 PRG and Spectrum TAP programs. C64 enters stock RUN, Spectrum uses ROM tape loading, and BBC enters every numbered source line through MOS/BASIC. Actual loaded program bytes, complete state packets, positive completion/count/guards and visible result pixels are checked. After the positive completion marker, the observer advances two complete display frames before capturing, so a partially scanned final character cannot masquerade as a finished picture. Firmware is not distributed.

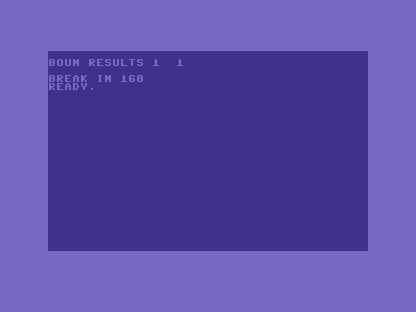

An independent mathematical/order model checks the trace and rejects altered source, configuration, loaded program, state, completion and image evidence. Host exhaustive checks complement the native boundary/sequential examples; those host ranges are not claimed as natively exhaustive. The supplied diagnostic callers deliberately end with STOP; the interpreter report is expected. The wrong caller prints 0,0 and the normal/custom/repaired callers print 1,1.
Public CI checks retained evidence; it does not execute restricted firmware. Refresh with python3 scripts/verify-basic-motion.py reflected-axis commodore-64 --tools /path/to/extracted/releases and inspect with python3 scripts/check-basic-motion.py reflected-axis.
