A binary score is good for adding points. People would rather read 12345 than its two storage bytes. This formatter turns any unsigned 16-bit value into five decimal characters, ready for a text routine to place or translate into tile numbers.
Include, initialise and call
Bind VALUE_LO, VALUE_HI, DIGIT0, DIGIT1, DIGIT2, DIGIT3, DIGIT4, WORK_LO, WORK_HI as 9 contiguous private bytes in that order. Include the helper once. Call decimal_format_init at the deliberate reset boundary: it clears all named bytes, including inputs. Set your starting values afterwards. Call decimal_format_step when this service is needed.
Bind all nine contiguous bytes, set the two value bytes and call step. Render the five output bytes afterwards. ASCII is a logical output contract: the C64 demo uses a prepared hex font and NES normally needs tile-number mapping, so these five bytes do not automatically become screen characters on either machine.
VALUE_LO/VALUE_HI contain an unsigned little-endian integer 0–65,535 and survive the call. Step writes exactly five ASCII bytes DIGIT0–DIGIT4 with leading zeroes, no terminator, and finishes with WORK_LO/WORK_HI zero. The work bytes belong to the helper, not to a second caller running concurrently.
Reusable initialisation and service
; SPDX-License-Identifier: MIT
; Format a 16-bit Decimal Number. Bind these contiguous private bytes: VALUE_LO, VALUE_HI, DIGIT0, DIGIT1, DIGIT2, DIGIT3, DIGIT4, WORK_LO, WORK_HI.
; init clears the whole block; step uses current inputs. No I/O, waits or IRQ owner.
; D0-D3/A0-A1/CCR may change; D4-D7/A2-A6 survive.
decimal_format_init:
clr.b VALUE_LO
clr.b VALUE_HI
clr.b DIGIT0
clr.b DIGIT1
clr.b DIGIT2
clr.b DIGIT3
clr.b DIGIT4
clr.b WORK_LO
clr.b WORK_HI
rts
decimal_format_step:
moveq #0,d0
move.b VALUE_HI,d0
lsl.w #8,d0
move.b VALUE_LO,d0
moveq #48,d1
format_0:
cmp.w #10000,d0
blo.s format_done_0
sub.w #10000,d0
addq.b #1,d1
bra.s format_0
format_done_0:
move.b d1,DIGIT0
moveq #48,d1
format_1:
cmp.w #1000,d0
blo.s format_done_1
sub.w #1000,d0
addq.b #1,d1
bra.s format_1
format_done_1:
move.b d1,DIGIT1
moveq #48,d1
format_2:
cmp.w #100,d0
blo.s format_done_2
sub.w #100,d0
addq.b #1,d1
bra.s format_2
format_done_2:
move.b d1,DIGIT2
moveq #48,d1
format_3:
cmp.w #10,d0
blo.s format_done_3
sub.w #10,d0
addq.b #1,d1
bra.s format_3
format_done_3:
move.b d1,DIGIT3
moveq #48,d1
format_4:
cmp.w #1,d0
blo.s format_done_4
sub.w #1,d0
addq.b #1,d1
bra.s format_4
format_done_4:
move.b d1,DIGIT4
clr.b WORK_LO
clr.b WORK_HI
rts
component_end:State and ownership
Two input bytes, five output characters and two scratch bytes. For example 65,535 produces ASCII bytes 36 35 35 33 35 in hexadecimal. Read DIGIT0–DIGIT4 as a counted five-byte span; there is no trailing zero to scan for.
On this 68000 the live remainder stays in D0; WORK_LO/WORK_HI only receive the final zero. They are retained in this example’s nine-byte binding, not required by the CPU arithmetic. A smaller target-specific variant can remove those two fields and their init/final stores, but that changes the binding and needs fresh records; it is not a measured seven-byte version here.
D0–D3/A0–A1/CCR may change; D4–D7/A2–A6 survive. A direct BSR/JSR uses four return-address stack bytes. The program is a 68000 implementation with no division instruction requirement.
This implementation has fixed symbol bindings and one mutation owner. Independent users need distinct state blocks and scoped/renamed bindings; including another copy with the same global labels is not sufficient. Sequential queries may reuse a scratch block only after the previous result has been consumed. Do not let an interrupt and the main loop mutate the same block without a separately designed ownership policy.
The standalone boot program takes over Copper/bitplane/interrupt/DMA resources, explicitly disarms all eight sprites, and does not restore Workbench. Those are diagnostic presentation choices; the helper itself owns no chipset registers.
A small caller you can adapt
The standalone program includes the helper and a separate client. Its read-only table exercises 96 valid inputs, then this client initialises once and retains state between calls. Replace the supplied input changes with your own game values; the display and packet machinery are diagnostics rather than dependencies of the component.
Buildable caller, bindings and include order
section code,code_c
CUSTOM = 0
BROKEN = 0
SCORE_CAP = 65535
QUEUE_CAP = 4
REPEAT_DELAY = 4
REPEAT_RATE = 2
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
include "cases.inc"
include "display.inc"
include "../turn-deadline/font.inc"
code_end:
STATE:
VALUE_LO: dc.b 0
VALUE_HI: dc.b 0
DIGIT0: dc.b 0
DIGIT1: dc.b 0
DIGIT2: dc.b 0
DIGIT3: dc.b 0
DIGIT4: dc.b 0
WORK_LO: dc.b 0
WORK_HI: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEPLAY000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0A separate client retaining state between calls
preview_rules:
ifne CUSTOM
move.b #0,VALUE_LO
move.b #16,VALUE_HI
ifne BROKEN
move.b #0,VALUE_HI
bsr checked_step
else
bsr checked_step
endif
bsr emit_state
else
move.b #255,VALUE_LO
move.b #255,VALUE_HI
ifne BROKEN
move.b #0,VALUE_HI
bsr checked_step
else
bsr checked_step
endif
bsr emit_state
endif

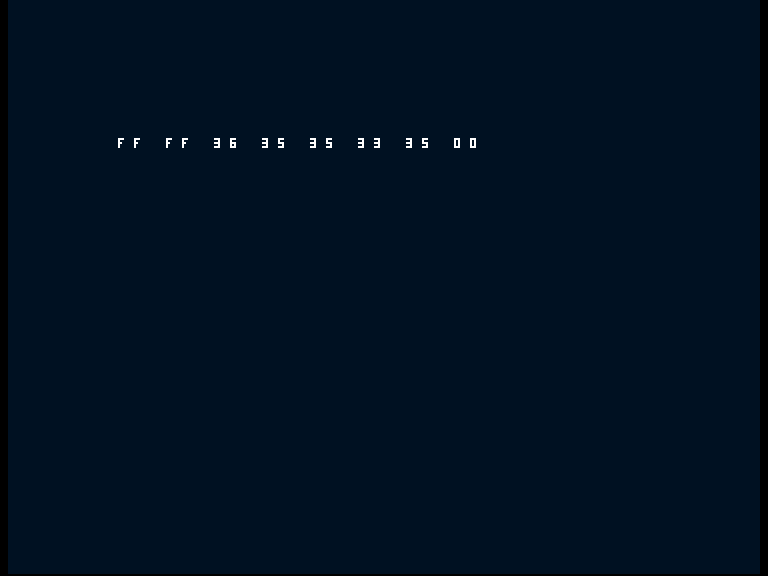

rtsThe eight display fields follow VALUE_LO, VALUE_HI, DIGIT0, DIGIT1, DIGIT2, DIGIT3, DIGIT4, WORK_LO; the full packet also retains WORK_HI. Each field is a hexadecimal byte. The working row is FF FF 36 35 35 33 35 00. The output is a completed diagnostic state, not a recording of movement, input or sound hardware.
Make it your own
The custom caller formats 4,096 instead of 65,535, producing 04096. To hide leading zeroes, choose a presentation policy after formatting while keeping at least the final zero for a value of zero.
Maintained custom configuration or caller
section code,code_c
CUSTOM = 1
BROKEN = 0
SCORE_CAP = 999
QUEUE_CAP = 2
REPEAT_DELAY = 6
REPEAT_RATE = 3
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
include "cases.inc"
include "display.inc"
include "../turn-deadline/font.inc"
code_end:
STATE:
VALUE_LO: dc.b 0
VALUE_HI: dc.b 0
DIGIT0: dc.b 0
DIGIT1: dc.b 0
DIGIT2: dc.b 0
DIGIT3: dc.b 0
DIGIT4: dc.b 0
WORK_LO: dc.b 0
WORK_HI: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEPLAY000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0The observed custom row is 00 10 30 34 30 39 36 00. The retained records qualify these named configurations; a new input domain or larger layout needs its own bounds and fresh execution checks.
Common mistake and repair

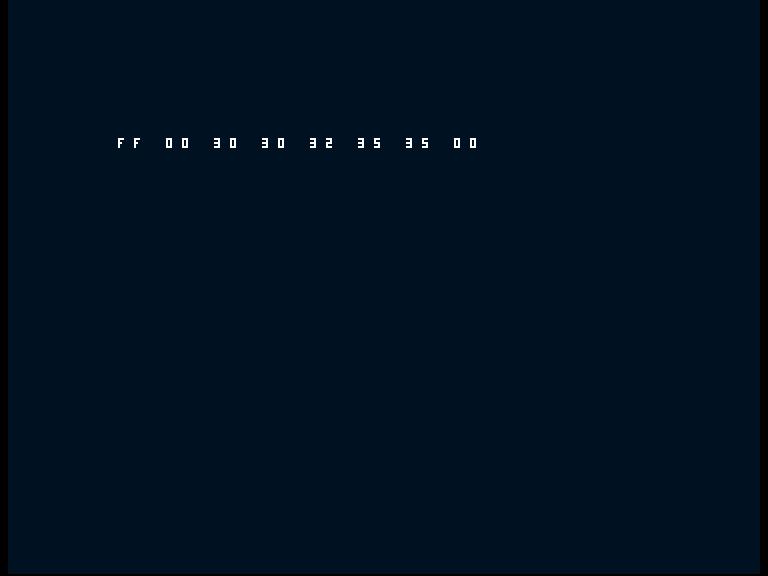

The wrong client clears VALUE_HI before formatting. The number 65,535 becomes 255, displayed as 00255. Copy both bytes from the score or counter; a correct formatter cannot recover a lost high byte.
Deliberately wrong client selection
section code,code_c
CUSTOM = 0
BROKEN = 1
SCORE_CAP = 65535
QUEUE_CAP = 4
REPEAT_DELAY = 4
REPEAT_RATE = 2
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
include "cases.inc"
include "display.inc"
include "../turn-deadline/font.inc"
code_end:
STATE:
VALUE_LO: dc.b 0
VALUE_HI: dc.b 0
DIGIT0: dc.b 0
DIGIT1: dc.b 0
DIGIT2: dc.b 0
DIGIT3: dc.b 0
DIGIT4: dc.b 0
WORK_LO: dc.b 0
WORK_HI: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEPLAY000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0
The wrong branch is in the displayed client above, selected by BROKEN. repaired.asm selects the original client again. Its executable matches demo exactly; Spectrum tape filenames can differ while loaded CODE is identical. The bad caller is a labelled experiment, not an alternative recommended implementation.
Cost and verification
The measured helper occupies 190 code bytes plus 9 named state bytes in this layout. Return addresses, alignment, tables and display diagnostics are additional. The sizes cover init and step together, not the whole standalone program.
Five digit stages subtract 10,000, 1,000, 100, 10 and 1. Each stage needs at most nine successful subtractions, so 45 is a safe upper bound for successful subtractions, plus five terminating comparisons. There is no hardware division or screen write. Convert when the displayed value changes rather than every frame if that saves useful work.
Packed BCD can trade conversion work for more expensive score updates, and lookup tables trade ROM space for conversion speed. A divide-based implementation suits some CPUs better. Signs, decimal points and values beyond 65,535 need a different contract and output width.
Four native runs use A500 OCS PAL with Kickstart 1.3 and an OFS boot disk; Asm198x 0.0.72 and Emu198x 0.44.2, with Build198x 0.2.9 for disk mastering. Every run checks 96 table results, dirty initialisation and every state in a separate sequential trace against an independent integer model. This is boundary/varied-input qualification, not exhaustive coverage of every byte combination. Source/tool/firmware hashes, native startup and completion, preserved-register sentinels, immutable loaded code, actual helper extent, capture bytes and pixels, and exact repair are checked. Deliberately changed observations must fail. Firmware is hashed, never distributed.
