Thirty updates from fifty display ticks should be spaced out, not rounded down to zero.
Use it in a project
NUMERATOR must be at most DENOMINATOR, DENOMINATOR must be nonzero and PHASE must be below it. Add the numerator to the retained phase; return FIRED=1 on a crossing and subtract the denominator. At most one event per call. Invalid input returns FIRED=0 and VALID=0 without changing PHASE.
Include component.inc once (MOS callers include the shared 6502 implementation through it). Reserve the public fields in this exact order: PHASE, NUMERATOR, DENOMINATOR, FIRED, VALID. They occupy 5 contiguous bytes. Also reserve the private workspace: T0 (1 bytes). Array names in the explanation refer to the numbered consecutive bindings, such as C0, C1 and so on.
Call rational_tick_divider_init once at the intended reset boundary. It clears inputs as well as outputs and workspace. Set your starting state and configuration afterwards, then call rational_tick_divider_step whenever the described event occurs. The helper reads no device, waits for no frame and installs no interrupt handler.
| Ownership | Fields |
|---|---|
| Retain between calls | PHASE |
| Supply before service | NUMERATOR and DENOMINATOR |
| Read after service | FIRED and VALID |
Think of PHASE as stored credit. Crossing one denominator spends that much credit and emits an event. The implementation tests the distance to the threshold before adding, so an intermediate byte cannot wrap.
Reusable initialisation and service
; SPDX-License-Identifier: MIT
; Divide Ticks Without Losing the Remainder. See README.md for the byte interface and ownership.
; init clears the public fields and private workspace; set inputs afterwards.
rational_tick_divider_init:
move.b #0,d0
move.b d0,PHASE
move.b d0,NUMERATOR
move.b d0,DENOMINATOR
move.b d0,FIRED
move.b d0,VALID
move.b d0,T0
rts
rational_tick_divider_step:
; FIRED = 0
move.b #0,d0
move.b d0,FIRED
; VALID = 0
move.b #0,d0
move.b d0,VALID
; if DENOMINATOR == 0:
move.b DENOMINATOR,d0
cmp.b #0,d0
beq rational_tick_divider_L1
jmp rational_tick_divider_L2
rational_tick_divider_L1:
; return
rts
jmp rational_tick_divider_L3
rational_tick_divider_L2:
rational_tick_divider_L3:
; if NUMERATOR > DENOMINATOR:
move.b NUMERATOR,d0
move.b DENOMINATOR,d1
cmp.b d1,d0
bhi rational_tick_divider_L4
jmp rational_tick_divider_L5
rational_tick_divider_L4:
; return
rts
jmp rational_tick_divider_L6
rational_tick_divider_L5:
rational_tick_divider_L6:
; if PHASE >= DENOMINATOR:
move.b PHASE,d0
move.b DENOMINATOR,d1
cmp.b d1,d0
bcc rational_tick_divider_L7
jmp rational_tick_divider_L8
rational_tick_divider_L7:
; return
rts
jmp rational_tick_divider_L9
rational_tick_divider_L8:
rational_tick_divider_L9:
; VALID = 1
move.b #1,d0
move.b d0,VALID
; T0 = DENOMINATOR - NUMERATOR
move.b DENOMINATOR,d0
move.b NUMERATOR,d1
sub.b d1,d0
move.b d0,T0
; if PHASE >= T0:
move.b PHASE,d0
move.b T0,d1
cmp.b d1,d0
bcc rational_tick_divider_L10
jmp rational_tick_divider_L11
rational_tick_divider_L10:
; PHASE = PHASE - T0
move.b PHASE,d0
move.b T0,d1
sub.b d1,d0
move.b d0,PHASE
; FIRED = 1
move.b #1,d0
move.b d0,FIRED
jmp rational_tick_divider_L12
rational_tick_divider_L11:
; PHASE = PHASE + NUMERATOR
move.b PHASE,d0
move.b NUMERATOR,d1
add.b d1,d0
move.b d0,PHASE
rational_tick_divider_L12:
rts
component_end:Machine contract
D0–D3/A0–A1/CCR may change; D4–D7/A2–A6 are preserved. A direct BSR/JSR needs four return-address stack bytes. The helper makes no nested calls and adds no other stack use. Its named scratch is private workspace, not a pointer, a ROM variable or shared zero-page space that the game may borrow concurrently. Scope or rename routine and field labels and allocate a separate block for each independent instance. Give each block one mutation owner.
The A500 OCS diagnostic cold-boots an OFS disk, owns the Copper and bitplane and disables interrupt/DMA sources. The helper does not take over hardware or allocate Chip RAM.
Adapt the caller
demo.asm supplies the bindings and include order. exercise.inc first runs table cases, then a separate client retaining state between calls. A game can call the public step entry directly and remove the diagnostic packet and display. Do not copy the diagnostic’s hardware takeover into an existing game loop.
Build with make ASM198X=/path/to/asm198x and BUILD198X=/path/to/build198x. The Makefile produces normal, custom, deliberately wrong and repaired programs. Tools must already be installed; the sample downloads nothing.
Bindings and include order
section code,code_c
CUSTOM = 0
BROKEN = 0
COYOTE_STEPS = 4
BUFFER_STEPS = 4
TEXT_CAP = 8
PROPERTY_COUNT = 16
STREAM_BYTES = 13
CRC_POLY = 7
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
even
include "data.inc"
include "cases.inc"
even
include "display.inc"
include "../../framework/turn-deadline/font.inc"
code_end:
STATE:
PHASE: dc.b 0
NUMERATOR: dc.b 0
DENOMINATOR: dc.b 0
FIRED: dc.b 0
VALID: dc.b 0
T0: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEKIT0000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0A client retaining state between calls
preview_rules:
ifne CUSTOM
; NUMERATOR = 1
move.b #1,d0
move.b d0,NUMERATOR
; DENOMINATOR = 3
move.b #3,d0
move.b d0,DENOMINATOR
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
rts
else
; NUMERATOR = 3
move.b #3,d0
move.b d0,NUMERATOR
; DENOMINATOR = 5
move.b #5,d0
move.b d0,DENOMINATOR
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
ifne BROKEN
; PHASE = 0
move.b #0,d0
move.b d0,PHASE
endif
bsr checked_step
bsr emit_state
endif
rtsCustomise it
Use one event per three calls instead of three per five. The maintained custom caller changes its inputs or client sequence rather than hiding a different implementation behind the same label. Compare every state of the two clients, not only their final display.
Custom client selection
section code,code_c
CUSTOM = 1
BROKEN = 0
COYOTE_STEPS = 2
BUFFER_STEPS = 2
TEXT_CAP = 4
PROPERTY_COUNT = 16
STREAM_BYTES = 13
CRC_POLY = 49
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
even
include "data.inc"
include "cases.inc"
even
include "display.inc"
include "../../framework/turn-deadline/font.inc"
code_end:
STATE:
PHASE: dc.b 0
NUMERATOR: dc.b 0
DENOMINATOR: dc.b 0
FIRED: dc.b 0
VALID: dc.b 0
T0: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEKIT0000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0The custom diagnostic row is 01 01 03 00 01 00 00 00. The full client trace in the source explains how it gets there.
Mistake and repair

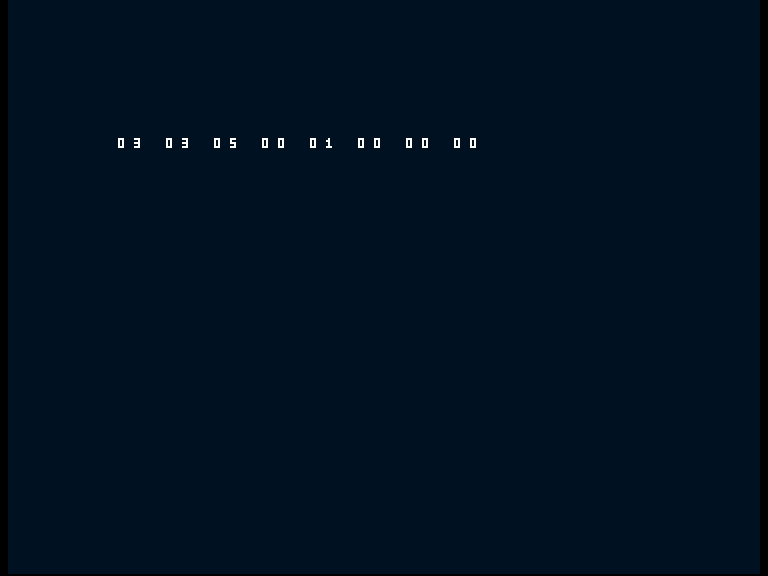

The wrong caller throws away PHASE before each tick. A fraction smaller than one never accumulates into an event. Keep the remainder even on ticks that return FIRED=0.
The BROKEN branch lives in the sequential client, not the reusable helper. wrong.asm selects it; repaired.asm restores the normal call sequence. The repaired executable matches the normal program (for Spectrum, compare loaded CODE rather than the tape filename).
Select the deliberately wrong client
section code,code_c
CUSTOM = 0
BROKEN = 1
COYOTE_STEPS = 4
BUFFER_STEPS = 4
TEXT_CAP = 8
PROPERTY_COUNT = 16
STREAM_BYTES = 13
CRC_POLY = 7
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
even
include "data.inc"
include "cases.inc"
even
include "display.inc"
include "../../framework/turn-deadline/font.inc"
code_end:
STATE:
PHASE: dc.b 0
NUMERATOR: dc.b 0
DENOMINATOR: dc.b 0
FIRED: dc.b 0
VALID: dc.b 0
T0: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEKIT0000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0
Cost and alternatives
The measured helper extent is 214 code bytes; public state is 5 bytes and private scratch is 1 bytes. There are no immutable helper tables. Caller data, the test cases, return-address stack, alignment and display buffers cost additional space. These are assembled sizes, not cycle measurements.
Constant work with no division instruction or table. Allowing a numerator larger than the denominator would require multiple events or a reported event count.
The subtract-before-add arrangement avoids an overflowing byte even when the denominator is 255. This is scheduling, not interpolation or an unlimited catch-up loop. A caller choosing frames rather than real time inherits that machine’s refresh rate.
Execution evidence
Four variants run on A500 OCS PAL, Kickstart1.3 OFS cold boot, using Asm198x 0.0.72, Emu198x 0.44.2 and Build198x 0.2.9. Each executes 64 boundary/varied/error table cases, dirty initialisation and the separate retained-state client. An independent mathematical/container model checks every public byte after every call. This is bounded example coverage, not exhaustive correctness for every possible state.
The records retain loaded immutable code, completion, register sentinels, full packets, source/tool/firmware hashes and captures. The public gate validates these retained observations and rejects altered evidence; it does not run restricted firmware. No firmware is distributed. The eight displayed bytes are the first eight public fields, zero-padded when shorter; the packet includes every field.
Where it fits
Animation timeline: Use the emitted tick to service an animation when its logical rate differs from the display rate.
