A sloping tile needs a surface at each horizontal position, not one flat collision edge.
Use it in a project
LOCAL_X 0–7 selects one of eight unsigned height offsets H0–H7. MIRROR nonzero reverses the profile. Add BASE_Y to the selected offset only if the result fits 0–255. SURFACE is 255 and VALID=0 on invalid x or overflow. The height profile remains unchanged.
Include component.inc once (MOS callers include the shared 6502 implementation through it). Reserve the public fields in this exact order: LOCAL_X, BASE_Y, MIRROR, SURFACE, VALID, H0, H1, H2, H3, H4, H5, H6, H7. They occupy 13 contiguous bytes. Also reserve the private workspace: T0, T1, T2 (3 bytes). Array names in the explanation refer to the numbered consecutive bindings, such as C0, C1 and so on.
Call slope_height_init once at the intended reset boundary. It clears inputs as well as outputs and workspace. Set your starting state and configuration afterwards, then call slope_height_step whenever the described event occurs. The helper reads no device, waits for no frame and installs no interrupt handler.
| Ownership | Fields |
|---|---|
| Retain between calls | none inside the helper |
| Supply before service | LOCAL_X, BASE_Y, MIRROR and H0–H7 |
| Read after service | SURFACE and VALID |
A height profile is a tiny lookup table. Mirroring changes its index rather than duplicating the data. The returned surface is useful to a crossing test, but querying a slope alone cannot decide whether an actor should land.
Reusable initialisation and service
; SPDX-License-Identifier: MIT
; Query a Small Slope Height Profile. See README.md for the byte interface and ownership.
; init clears the public fields and private workspace; set inputs afterwards.
slope_height_init:
move.b #0,d0
move.b d0,LOCAL_X
move.b d0,BASE_Y
move.b d0,MIRROR
move.b d0,SURFACE
move.b d0,VALID
move.b d0,H0
move.b d0,H1
move.b d0,H2
move.b d0,H3
move.b d0,H4
move.b d0,H5
move.b d0,H6
move.b d0,H7
move.b d0,T0
move.b d0,T1
move.b d0,T2
rts
slope_height_step:
; SURFACE = 255
move.b #255,d0
move.b d0,SURFACE
; VALID = 0
move.b #0,d0
move.b d0,VALID
; if LOCAL_X >= 8:
move.b LOCAL_X,d0
cmp.b #8,d0
bcc slope_height_L1
jmp slope_height_L2
slope_height_L1:
; return
rts
jmp slope_height_L3
slope_height_L2:
slope_height_L3:
; T0 = LOCAL_X
move.b LOCAL_X,d0
move.b d0,T0
; if MIRROR != 0:
move.b MIRROR,d0
cmp.b #0,d0
bne slope_height_L4
jmp slope_height_L5
slope_height_L4:
; T0 = 7 - T0
move.b #7,d0
move.b T0,d1
sub.b d1,d0
move.b d0,T0
jmp slope_height_L6
slope_height_L5:
slope_height_L6:
; T1 = H[T0]
moveq #0,d1
move.b T0,d1
lea H0,a0
move.b 0(a0,d1.w),d0
move.b d0,T1
; T2 = 255 - BASE_Y
move.b #255,d0
move.b BASE_Y,d1
sub.b d1,d0
move.b d0,T2
; if T1 > T2:
move.b T1,d0
move.b T2,d1
cmp.b d1,d0
bhi slope_height_L7
jmp slope_height_L8
slope_height_L7:
; return
rts
jmp slope_height_L9
slope_height_L8:
slope_height_L9:
; SURFACE = BASE_Y + T1
move.b BASE_Y,d0
move.b T1,d1
add.b d1,d0
move.b d0,SURFACE
; VALID = 1
move.b #1,d0
move.b d0,VALID
rts
component_end:Machine contract
D0–D3/A0–A1/CCR may change; D4–D7/A2–A6 are preserved. A direct BSR/JSR needs four return-address stack bytes. The helper makes no nested calls and adds no other stack use. Its named scratch is private workspace, not a pointer, a ROM variable or shared zero-page space that the game may borrow concurrently. Scope or rename routine and field labels and allocate a separate block for each independent instance. Give each block one mutation owner.
The A500 OCS diagnostic cold-boots an OFS disk, owns the Copper and bitplane and disables interrupt/DMA sources. The helper does not take over hardware or allocate Chip RAM.
Adapt the caller
demo.asm supplies the bindings and include order. exercise.inc first runs table cases, then a separate client retaining state between calls. A game can call the public step entry directly and remove the diagnostic packet and display. Do not copy the diagnostic’s hardware takeover into an existing game loop.
Build with make ASM198X=/path/to/asm198x and BUILD198X=/path/to/build198x. The Makefile produces normal, custom, deliberately wrong and repaired programs. Tools must already be installed; the sample downloads nothing.
Bindings and include order
section code,code_c
CUSTOM = 0
BROKEN = 0
COYOTE_STEPS = 4
BUFFER_STEPS = 4
TEXT_CAP = 8
PROPERTY_COUNT = 16
STREAM_BYTES = 13
CRC_POLY = 7
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
even
include "data.inc"
include "cases.inc"
even
include "display.inc"
include "../../framework/turn-deadline/font.inc"
code_end:
STATE:
LOCAL_X: dc.b 0
BASE_Y: dc.b 0
MIRROR: dc.b 0
SURFACE: dc.b 0
VALID: dc.b 0
H0: dc.b 0
H1: dc.b 0
H2: dc.b 0
H3: dc.b 0
H4: dc.b 0
H5: dc.b 0
H6: dc.b 0
H7: dc.b 0
T0: dc.b 0
T1: dc.b 0
T2: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEKIT0000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0A client retaining state between calls
preview_rules:
ifne CUSTOM
; LOCAL_X = 1
move.b #1,d0
move.b d0,LOCAL_X
; BASE_Y = 100
move.b #100,d0
move.b d0,BASE_Y
; H0 = 7
move.b #7,d0
move.b d0,H0
; H1 = 6
move.b #6,d0
move.b d0,H1
; H2 = 5
move.b #5,d0
move.b d0,H2
; H3 = 4
move.b #4,d0
move.b d0,H3
; H4 = 3
move.b #3,d0
move.b d0,H4
; H5 = 2
move.b #2,d0
move.b d0,H5
; H6 = 1
move.b #1,d0
move.b d0,H6
; H7 = 0
move.b #0,d0
move.b d0,H7
; MIRROR = 1
move.b #1,d0
move.b d0,MIRROR
ifne BROKEN
; LOCAL_X = 0
move.b #0,d0
move.b d0,LOCAL_X
endif
bsr checked_step
bsr emit_state
; LOCAL_X = 6
move.b #6,d0
move.b d0,LOCAL_X
ifne BROKEN
; LOCAL_X = 0
move.b #0,d0
move.b d0,LOCAL_X
endif
bsr checked_step
bsr emit_state
rts
else
; LOCAL_X = 1
move.b #1,d0
move.b d0,LOCAL_X
; BASE_Y = 100
move.b #100,d0
move.b d0,BASE_Y
; H0 = 7
move.b #7,d0
move.b d0,H0
; H1 = 6
move.b #6,d0
move.b d0,H1
; H2 = 5
move.b #5,d0
move.b d0,H2
; H3 = 4
move.b #4,d0
move.b d0,H3
; H4 = 3
move.b #3,d0
move.b d0,H4
; H5 = 2
move.b #2,d0
move.b d0,H5
; H6 = 1
move.b #1,d0
move.b d0,H6
; H7 = 0
move.b #0,d0
move.b d0,H7
ifne BROKEN
; LOCAL_X = 0
move.b #0,d0
move.b d0,LOCAL_X
endif
bsr checked_step
bsr emit_state
; LOCAL_X = 6
move.b #6,d0
move.b d0,LOCAL_X
ifne BROKEN
; LOCAL_X = 0
move.b #0,d0
move.b d0,LOCAL_X
endif
bsr checked_step
bsr emit_state
endif
rtsCustomise it
Mirror the profile without making a second height table. The maintained custom caller changes its inputs or client sequence rather than hiding a different implementation behind the same label. Compare every state of the two clients, not only their final display.
Custom client selection
section code,code_c
CUSTOM = 1
BROKEN = 0
COYOTE_STEPS = 2
BUFFER_STEPS = 2
TEXT_CAP = 4
PROPERTY_COUNT = 16
STREAM_BYTES = 13
CRC_POLY = 49
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
even
include "data.inc"
include "cases.inc"
even
include "display.inc"
include "../../framework/turn-deadline/font.inc"
code_end:
STATE:
LOCAL_X: dc.b 0
BASE_Y: dc.b 0
MIRROR: dc.b 0
SURFACE: dc.b 0
VALID: dc.b 0
H0: dc.b 0
H1: dc.b 0
H2: dc.b 0
H3: dc.b 0
H4: dc.b 0
H5: dc.b 0
H6: dc.b 0
H7: dc.b 0
T0: dc.b 0
T1: dc.b 0
T2: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEKIT0000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0The custom diagnostic row is 06 64 01 6A 01 07 06 05. The full client trace in the source explains how it gets there.
Mistake and repair

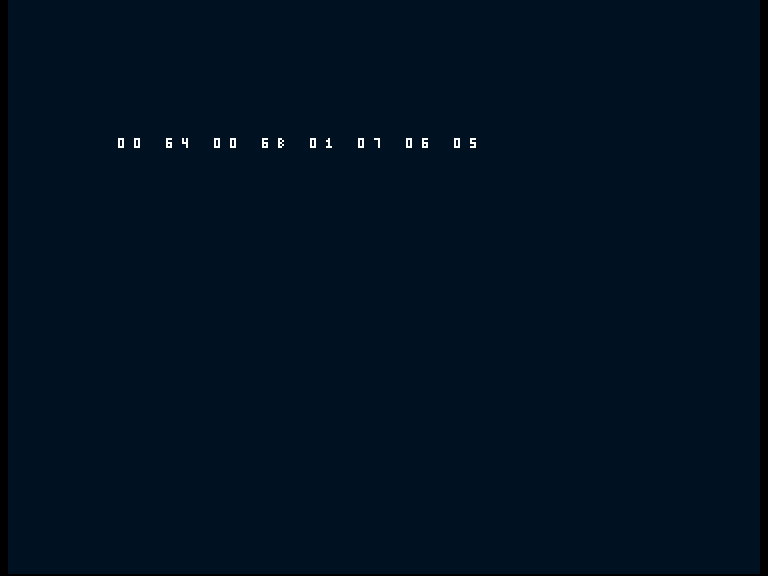

The wrong caller replaces LOCAL_X with zero. Every query samples one column of the profile, flattening the intended surface. Keep the actual tile-local coordinate and mirror the profile only through MIRROR.
The BROKEN branch lives in the sequential client, not the reusable helper. wrong.asm selects it; repaired.asm restores the normal call sequence. The repaired executable matches the normal program (for Spectrum, compare loaded CODE rather than the tape filename).
Select the deliberately wrong client
section code,code_c
CUSTOM = 0
BROKEN = 1
COYOTE_STEPS = 4
BUFFER_STEPS = 4
TEXT_CAP = 8
PROPERTY_COUNT = 16
STREAM_BYTES = 13
CRC_POLY = 7
include "caller.inc"
include "exercise.inc"
component_start:
include "component.inc"
even
include "data.inc"
include "cases.inc"
even
include "display.inc"
include "../../framework/turn-deadline/font.inc"
code_end:
STATE:
LOCAL_X: dc.b 0
BASE_Y: dc.b 0
MIRROR: dc.b 0
SURFACE: dc.b 0
VALID: dc.b 0
H0: dc.b 0
H1: dc.b 0
H2: dc.b 0
H3: dc.b 0
H4: dc.b 0
H5: dc.b 0
H6: dc.b 0
H7: dc.b 0
T0: dc.b 0
T1: dc.b 0
T2: dc.b 0
even
ready: dc.w 0
preview: dcb.b 8,0
OUTPUT: dcb.b 1300,0
even
signature: dc.b "198XGAMEKIT0000",0
even
copperlist:
dc.w $08e,$2c81,$090,$2cc1,$092,$0038,$094,$00d0
dc.w $100,$1200,$102,0,$104,0,$108,0,$10a,0
dc.w $180,$012,$182,$fff
copbpl:
dc.w $0e0,0,$0e2,0
dc.w $ffff,$fffe
plane: dcb.b 10240,0
Cost and alternatives
The measured helper extent is 270 code bytes; public state is 13 bytes and private scratch is 3 bytes. There are no immutable helper tables. Caller data, the test cases, return-address stack, alignment and display buffers cost additional space. These are assembled sizes, not cycle measurements.
Constant work with one profile lookup. An eight-byte profile can represent irregular shapes that a single slope equation cannot, trading data for arithmetic.
This returns geometry, not a full collision response. Convert world coordinates to tile-local x, query the surface, then decide crossing and snapping using the actor’s previous/proposed foot positions. Wide characters need multiple probes; ceilings and moving slopes need their own policy.
Execution evidence
Four variants run on A500 OCS PAL, Kickstart1.3 OFS cold boot, using Asm198x 0.0.72, Emu198x 0.44.2 and Build198x 0.2.9. Each executes 64 boundary/varied/error table cases, dirty initialisation and the separate retained-state client. An independent mathematical/container model checks every public byte after every call. This is bounded example coverage, not exhaustive correctness for every possible state.
The records retain loaded immutable code, completion, register sentinels, full packets, source/tool/firmware hashes and captures. The public gate validates these retained observations and rejects altered evidence; it does not run restricted firmware. No firmware is distributed. The eight displayed bytes are the first eight public fields, zero-padded when shorter; the packet includes every field.
Where it fits
One-way platform crossing: Querying a surface gives the height; a previous-to-proposed crossing test decides whether the actor should land on it.
