Add Signed Acceleration Without Wrapping in Spectrum BASIC

Gravity should keep adding downward speed until terminal velocity. It should not turn a fast fall into an upward launch because a narrow integer overflowed. This helper clamps the mathematical sum before putting it back into a signed word.

Include and initialise

Reserve public L/H/A/B/C/D/F/O and private V/R/T/G. Reserve lines 3000–3240, combine routines.bas and a caller with build.py and keep END, STOP or a jump before the helper. C64/BBC use GOSUB; Spectrum uses GO SUB. Private numeric scratch is overwritten by each call.

Call 3000 at a reset boundary. It clears every public field. Set velocity L/H, acceleration A/B and limit C/D afterwards, low byte first. Velocity and acceleration are signed two’s-complement 8.8 words; the limit is a nonnegative raw magnitude.

Add, then clamp

Call 3100. O=1 reports a valid operation. L/H becomes the wide mathematical sum clamped to -limit..+limit. F=1 only if the unclamped sum was outside that interval. An exact endpoint is not clipped. Acceleration and limit bytes survive.

All six input bytes must be integral, and D must be below 128. Invalid input clears F/O and preserves velocity, acceleration and limit. A valid limit is 0..32,767 raw units. The symmetric magnitude 32,768 cannot be used because its positive signed endpoint is not representable. Zero is a valid limit that holds the resulting velocity at zero.

Initial velocity can be anywhere in the signed-word range, including outside a newly chosen limit. The helper adds in a wider range and then clamps. It does not wrap first or reject that initial velocity merely because the limit is smaller.

The reusable routine

Reusable numbered routines

3000 LET L=0: LET H=0: LET A=0: LET B=0: LET C=0: LET D=0: LET F=0: LET O=0: RETURN
3100 LET F=0: LET O=0
3110 IF L<0 OR L>255 OR L<>INT (L) THEN RETURN
3120 IF H<0 OR H>255 OR H<>INT (H) THEN RETURN
3130 IF A<0 OR A>255 OR A<>INT (A) THEN RETURN
3140 IF B<0 OR B>255 OR B<>INT (B) THEN RETURN
3150 IF C<0 OR C>255 OR C<>INT (C) THEN RETURN
3160 IF D<0 OR D>=128 OR D<>INT (D) THEN RETURN
3170 LET V=L+256*H: LET R=A+256*B: LET G=C+256*D
3180 IF V>=32768 THEN LET V=V-65536
3190 IF R>=32768 THEN LET R=R-65536
3200 LET T=V+R
3210 IF T>G THEN LET T=G: LET F=1
3220 IF T<-G THEN LET T=-G: LET F=1
3230 IF T<0 THEN LET T=T+65536
3240 LET H=INT (T/256): LET L=T-256*H: LET O=1: RETURN

The two words are decoded as signed values, added using BASIC’s wider numeric intermediate, then clamped and encoded again. For example 32,767+32,767 must remain a large positive sum until clamping; interpreting its wrapped sixteen-bit result would reverse its sign.

Retain velocity across updates

The normal caller adds −0.5 per call with a 2.0 limit. Four calls reach −2.0 exactly; the next call is clipped there. The custom caller lowers the limit to 1.0 and clips on later calls. The trace also exercises an invalid limit and a valid zero limit.

Example calls from the maintained caller

  70 GO SUB 3000: LET AA=0: LET BB=0
  80 LET L=0: LET H=0: LET A=128: LET B=255: LET C=0: LET D=2
  90 FOR Z=1 TO 4: GO SUB 3100: GO SUB 2000: NEXT Z
 100 IF L=0 AND H=254 THEN LET AA=1
 110 IF B=255 THEN LET BB=1
 120 GO SUB 3100: GO SUB 2000
 130 LET D=128: GO SUB 3100: GO SUB 2000
 140 LET C=0: LET D=0: GO SUB 3100: GO SUB 2000
 150 PRINT "PUSH RESULTS";AA;BB
 160 POKE MB+995,AA: POKE MB+996,BB: POKE MB+997,GD: POKE MB+998,WC-256*INT (WC/256): POKE MB+999,INT (WC/256): POKE MB+1000,239: STOP

Line 2000, AA/BB/JJ (Z on Spectrum) and the mailbox are diagnostics. A game retains L/H, supplies A/B/C/D and calls 3100 at its chosen simulation point. Acceleration here is a velocity increment per service; no elapsed-time conversion happens inside the helper.

Customise speed and integration

Choose the limit and increment for the intended update rate. Applying acceleration before position or after position changes the integrator’s behaviour; make that order explicit in the game. This component clamps one axis. Applying it independently to two axes does not enforce a circular vector-speed limit.

BASIC real-valued velocity and an ordinary clamp can be simpler where no packed-word contract is needed. This port makes signed representation, precision and interoperability inspectable. Higher-resolution formats, asymmetric limits, drag and a magnitude-based speed cap need deliberate extensions and tests.

Mistake and repair

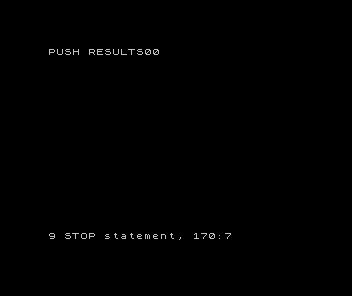

The wrong caller clears the acceleration’s high byte B. The intended FF80 word, −0.5, becomes 0080, +0.5. The helper validly accelerates the wrong way and both saved checks fail. Preserve the signed high byte rather than zero-extending a negative value. Repaired source and loaded program match the normal caller.

Cost and Maths for Games

The helper performs fixed validation, signed conversion, addition, two clamp comparisons and result encoding. Its intermediate covers sums from −65,536 through 65,534 without wrapping. BASIC numeric storage and tokenised size are not the native eight-byte binding. No frame-time or cycle guarantee is made.

Maths for Games connects signed ranges, fixed-point units, saturation and integration order. The Craft connects acceleration, terminal speed and predictable control.

Global names and line numbers

BASIC numeric names, arrays and numbered lines are global. To combine helpers, rename public and private fields and renumber the helper together with every GO SUB/GO TO reference. Keep each state block under one owner. The maintained build.py rejects duplicate line numbers; it does not automatically namespace or renumber routines.

Machine and measured size

Spectrum FOR variables must be single letters: this diagnostic uses Z instead of the other callers’ JJ. The helper uses scalar numeric fields and allocates no arrays. AND/OR in these listings join comparisons; neither is being used as a bitwise operator. The diagnostic reserves its mailbox above CLEAR 59999.

The numbered helper occupies 610 tokenised program bytes on this interpreter, including line headers. This excludes the caller, test tables, numeric scalar/array storage, interpreter stacks and ROM. Tokenised size is not machine-code size or a hardware-cycle count. No real-time or whole-game performance budget is inferred from the diagnostic. The caller’s AA/BB, Z and RAM mailbox are observation machinery, not required game state.

Execution evidence

Working, custom, deliberately wrong and exact repaired callers executed through Spectrum’s stock BASIC interpreter under Emu198x 0.44.2. Build198x 0.2.9 tokenises C64 PRG and Spectrum TAP programs. C64 enters stock RUN, Spectrum uses ROM tape loading, and BBC enters every numbered source line through MOS/BASIC. Actual loaded program bytes, complete state packets, positive completion/count/guards and visible result pixels are checked. After the positive completion marker, the observer advances two complete display frames before capturing, so a partially scanned final character cannot masquerade as a finished picture. Firmware is not distributed.

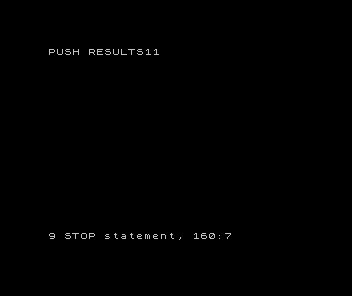

An independent mathematical/order model checks the trace and rejects altered source, configuration, loaded program, state, completion and image evidence. Host exhaustive checks complement the native boundary/sequential examples; those host ranges are not claimed as natively exhaustive. The supplied diagnostic callers deliberately end with STOP; the interpreter report is expected. The wrong caller prints 0,0 and the normal/custom/repaired callers print 1,1.

Public CI checks retained evidence; it does not execute restricted firmware. Refresh with python3 scripts/verify-basic-motion.py bounded-acceleration sinclair-zx-spectrum --tools /path/to/extracted/releases and inspect with python3 scripts/check-basic-motion.py bounded-acceleration.

Explore further

Compare the assembly technique. The BASIC game-flow routine makes session boundaries explicit. Complete source and native evidence.
