Draw a life bar, outline a room or inspect one dot before deciding where a bullet lands. These are six callable routines for a bitmap you own. Use a point when you need one pixel; use a span or box when that is the job, so the machine does not calculate every address again.
Include it, then draw a box
Reserve 48 bytes at BP, in zero page at $70. Define PIXEL_WIDTH/HEIGHT as 256/192, and PIXEL_BYTE_STEP as 1. Include 6502.inc once and retain the complete caller’s bitmap_lo/hi row tables. Code, stack, tables, BP and the bitmap must not alias. Scratch needs no initialisation; public request fields do.
After the named display setup, this is a normal direct call. The excerpt stops before the diagnostic marker/mailbox; your game does not need those stores.
Outline [13,91) across and [27,53) down
; A normal game call: outline a box. End coordinates are exclusive.
lda #<13
sta BP+0
lda #>13
sta BP+1
lda #<27
sta BP+2
lda #>27
sta BP+3
lda #<91
sta BP+4
lda #>91
sta BP+5
lda #<53
sta BP+6
lda #>53
sta BP+7
lda #0
sta BP+8
jsr bp_boxRead BP+9: one means accepted, zero rejected. Change the fields and call again. There is no retained drawing list or game loop inside the component.
The calling contract
Words use little-endian order. Origin is top left, Y downwards. Call bp_pixel, bp_read, bp_hspan, bp_vspan, bp_fill or bp_box.
| BP offset | Supply or read |
|---|---|
| 0,2 | Unsigned x0,y0 words |
| 4,6 | Exclusive x1,y1 words |
| 8 | Operation 0 set, 1 clear, 2 XOR; read requires 0 |
| 9 | Accepted 1, rejected 0 |
| 10 | Stored read bit 0/1; otherwise 0 |
| 11 | Ignored and preserved |
| 12–39,42–47 | Private scratch |
| 40 | Output word: destination-byte stores |
Pixel/read ignore both ends; hspan ignores y1; vspan ignores x1. Fill and box use [x0,x1)×[y0,y1). A box [5,13)×[20,24) is eight pixels wide and four high. The effective rectangle must be ordered, nonempty and inside 256×192; invalid requests reject before destination writes, with zero read/write outputs. Public inputs 0–8 and 11 survive.
This is strict rejection rather than clipping. Intersect with your display before calling if you want partially visible shapes. An outline visits a shared corner once, including a 1×1 box; XOR therefore leaves its corner visible instead of toggling it twice.
Linear rows, with enough video RAM
This caller selects the full RAM Atom model, sets the 8255/VDG for 256×192 and owns $8000–$97FF. It is not a claim that a base 2.5 KiB machine provides this complete allocation. Each row is 32 consecutive bytes:
address = $8000 + y*32 + (x div 8)
At (13,20), that is $8281, mask $04. The first pixel in the next row is thirty-two addresses after this row’s start. The 384-byte scanline tables keep that layout out of the drawing loop. The routine needs PIXEL_BYTE_STEP=1; other Atom modes need another contract.
The original combined reset image contains no Acorn firmware. Your own BASIC/OS project needs to arrange graphics memory and loading, rather than treating this reset setup as a loader. This execution establishes the full-RAM configuration only; it does not transfer timing claims from Dragon, which also has a VDG, or from another Acorn machine.
Division chooses a byte; remainder chooses a bit
At X13, 13 div 8 = 1 picks byte-column one and 13 mod 8 = 5 picks its sixth pixel. With bit 7 leftmost, 128 >> 5 = 4. OR sets the mask, AND with its inverse clears it, and XOR toggles it. Replacing the byte with just $04 would erase seven neighbours.
Place a point explains the origin and local/screen distinction. Draw with integer error shows how points and spans build curves. A qualified primitive does not automatically qualify those higher-level adapters on this display; their machine entries name their own evidence.
Open the reusable 6502 backend
Include the maintained backend once
; SPDX-License-Identifier: MIT
; Monochrome byte/span drawing with caller-supplied trusted scanline tables. BP reserves 48 zero-page bytes; decimal mode must be off.
; Public words: +0 x0, +2 y0, +4 x1, +6 y1 (little-endian, exclusive ends).
; +8 operation 0=set,1=clear,2=XOR. +9 accepted, +10 read value.
; +40 word counts destination-byte writes for the most recent call.
; Calls destroy A/X/Y/flags, +12..47; inputs +0..8 survive. Not re-entrant.
; bitmap_lo/hi[y] names the selected content viewport; PIXEL_BYTE_STEP is 1 (linear) or 8 (interleaved).
; All entries reject the whole request before writing; empty/reversed is rejected.
bp_fill:
lda #0
beq bp_enter
bp_box:
lda #1
bne bp_enter
bp_pixel:
lda #2
bne bp_enter
bp_read:
lda #3
bne bp_enter
bp_hspan:
lda #4
bne bp_enter
bp_vspan:
lda #5
bp_enter:
sta BP+12
lda #0
sta BP+9
sta BP+10
sta BP+40
sta BP+41
ldx #7
bp_copy:
lda BP,x
sta BP+16,x
dex
bpl bp_copy
lda BP+12
cmp #2
bcc bp_validate
cmp #5
beq bp_unit_x
; Pixel/read/hspan have height 1.
lda BP+18
clc
adc #1
sta BP+22
lda BP+19
adc #0
sta BP+23
lda BP+12
cmp #4
beq bp_validate
bp_unit_x:
lda BP+16
clc
adc #1
sta BP+20
lda BP+17
adc #0
sta BP+21
bp_validate:
lda BP+12
cmp #3
bne bp_operation_check
lda BP+8
beq bp_operation_check
rts
bp_operation_check:
lda BP+8
cmp #3
bcs bp_invalid
; Checked coordinates use PIXEL_WIDTH/HEIGHT, not an assumed OS mode.
lda BP+17
cmp BP+21
bcc bp_x_ordered
bne bp_invalid
lda BP+16
cmp BP+20
bcs bp_invalid
bp_x_ordered:
lda BP+21
cmp #>PIXEL_WIDTH
bcc bp_y_check
bne bp_invalid
lda BP+20
cmp #<PIXEL_WIDTH
bcc bp_y_check
bne bp_invalid
bp_y_check:
lda BP+19
cmp BP+23
bcc bp_y_ordered
bne bp_invalid
lda BP+18
cmp BP+22
bcs bp_invalid
bp_y_ordered:
lda BP+23
cmp #>PIXEL_HEIGHT
bcc bp_valid
bne bp_invalid
lda BP+22
cmp #<PIXEL_HEIGHT
bcc bp_valid
beq bp_valid
bp_invalid:
rts
bp_valid:
lda #1
sta BP+9
lda BP+16
and #7
tax
lda bp_right_masks,x
sta BP+24
lda bp_bit_masks,x
sta BP+26
lda BP+20
and #7
tax
lda bp_left_masks,x
sta BP+25
; last pixel phase = (x1-1)&7.
txa
sec
sbc #1
and #7
tax
lda bp_bit_masks,x
sta BP+27
; First and last byte column, allowing x >= 256.
lda BP+17
sta BP+31
lda BP+16
lsr BP+31
ror
lsr BP+31
ror
lsr BP+31
ror
sta BP+28
lda BP+20
sec
sbc #1
sta BP+30
lda BP+21
sbc #0
sta BP+31
lsr BP+31
ror BP+30
lsr BP+31
ror BP+30
lsr BP+31
ror BP+30
lda BP+30
sta BP+29
lda BP+18
sta BP+32
lda BP+19
sta BP+33
lda BP+22
sec
sbc #1
sta BP+42
lda BP+23
sbc #0
sta BP+43
bp_row:
lda #0
sta BP+39
ldx BP+32
lda bitmap_lo,x
sta BP+34
lda bitmap_hi,x
sta BP+35
; Add byte column to the configured row start.
lda BP+28
ldx #0
stx BP+31
!if PIXEL_BYTE_STEP = 8 {
asl
rol BP+31
asl
rol BP+31
asl
rol BP+31
}
clc
adc BP+34
sta BP+34
lda BP+31
adc BP+35
sta BP+35
lda BP+28
sta BP+30
lda BP+24
sta BP+36
lda BP+25
sta BP+37
lda BP+12
cmp #1
bne bp_bytes
; Middle rows of an outline contain only its left and right pixels.
lda BP+32
cmp BP+18
beq bp_bytes
cmp BP+42
bne bp_sides
lda BP+33
cmp BP+43
beq bp_bytes
bp_sides:
lda #1
sta BP+39
lda BP+26
sta BP+36
lda BP+27
sta BP+37
bp_bytes:
lda #255
sta BP+38
lda BP+30
cmp BP+28
bne bp_not_first
lda BP+36
sta BP+38
bp_not_first:
lda BP+30
cmp BP+29
bne bp_not_last
lda BP+38
and BP+37
sta BP+38
; Same-byte outline sides need OR, not intersection.
lda BP+39
beq bp_not_last
lda BP+30
cmp BP+28
bne bp_not_last
lda BP+36
ora BP+37
sta BP+38
bp_not_last:
; For outline middle rows, skip bytes between the sides.
lda BP+39
beq bp_apply
lda BP+30
cmp BP+28
beq bp_apply
cmp BP+29
bne bp_advance
bp_apply:
ldy #0
lda BP+12
cmp #3
bne bp_write
lda (BP+34),y
and BP+38
beq bp_return
lda #1
sta BP+10
bp_return:
rts
bp_write:
lda BP+8
beq bp_set
cmp #1
beq bp_clear
lda (BP+34),y
eor BP+38
jmp bp_store
bp_clear:
lda BP+38
eor #255
and (BP+34),y
jmp bp_store
bp_set:
lda BP+38
ora (BP+34),y
bp_store:
sta (BP+34),y
inc BP+40
bne bp_advance
inc BP+41
bp_advance:
lda BP+30
cmp BP+29
beq bp_next_row
inc BP+30
clc
lda BP+34
adc #PIXEL_BYTE_STEP
sta BP+34
bcc bp_bytes_jump
inc BP+35
bp_bytes_jump:
jmp bp_bytes
bp_next_row:
inc BP+32
bne bp_row_test
inc BP+33
bp_row_test:
lda BP+32
cmp BP+22
bne bp_more_rows
lda BP+33
cmp BP+23
beq bp_return
bp_more_rows:
jmp bp_row
bp_right_masks:
!byte 255,127,63,31,15,7,3,1
bp_left_masks:
!byte 255,128,192,224,240,248,252,254
bp_bit_masks:
!byte 128,64,32,16,8,4,2,1What it costs, and what to try next
A 32×8 fill takes 32 byte stores at X24 and 40 at X25 on this backend. Full-display fills take 6,144 stores. Spans protect their two edges and write full interior bytes, avoiding repeated per-pixel work. These are observed destination stores, not elapsed cycles or a frame-budget promise.
The backend assembles to 528 bytes, plus 384 bytes of row tables and the 48-byte context. Reset setup, bitmap, stack and assets are additional. The row tables spend storage to avoid deriving the complete display address during every call. A character-backed or sprite display may fit a game’s actual job better than painting bitmap shapes.
Clobbers A/X/Y/P. Decimal mode must be off on entry; the caller uses CLD during setup. Reserve a conservative 64-byte stack budget beyond your other calls/IRQs. BP is non-re-entrant. The routine changes no interrupt enables, acquires no OS display and synchronises no video access. Your caller owns that integration.
What was verified

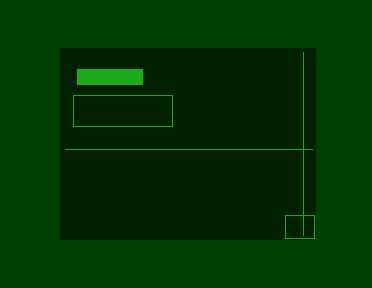

169 calls completed using Asm198x 0.0.71 and native Emu198x 0.39.0 in the stated original reset configuration. Every call compares the complete bitmap allocation, guards, public inputs, acceptance/read and byte-store counts with an independent selected-pixel model. Cases cover every horizontal phase, set/clear/XOR/read, tiny and full rectangles, last pixels, row boundaries, rejected declarations and aligned/unaligned fills. Selected whole native frames match independently composed images.
This machine ran independently; a related display’s result is not borrowed as proof. Wrong-mask and wrong-row executables each complete accepted calls and fail both memory and picture checks. Retained records bind exact source/tools and have evidence-corruption failure tests. Stock-OS loading, original-hardware timing and tear-free coexistence remain separate checks.
